In industrial piping systems where cleanliness, ease of maintenance, and leak-proof performance are critical, the tri clamp (short for "tri-clamp fitting" or "three-piece clamp") stands out as a standard solution. Widely used in industries such as food and beverage, pharmaceuticals, biotechnology, and cosmetics, this versatile connector enables quick assembly, disassembly, and maintenance while adhering to strict sanitary standards. In this article, we’ll explore its design, components, applications, and key advantages.

What Is a Tri Clamp?

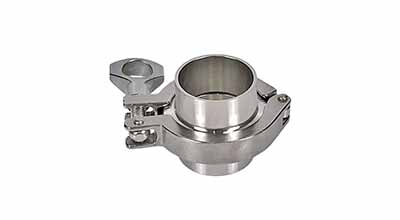

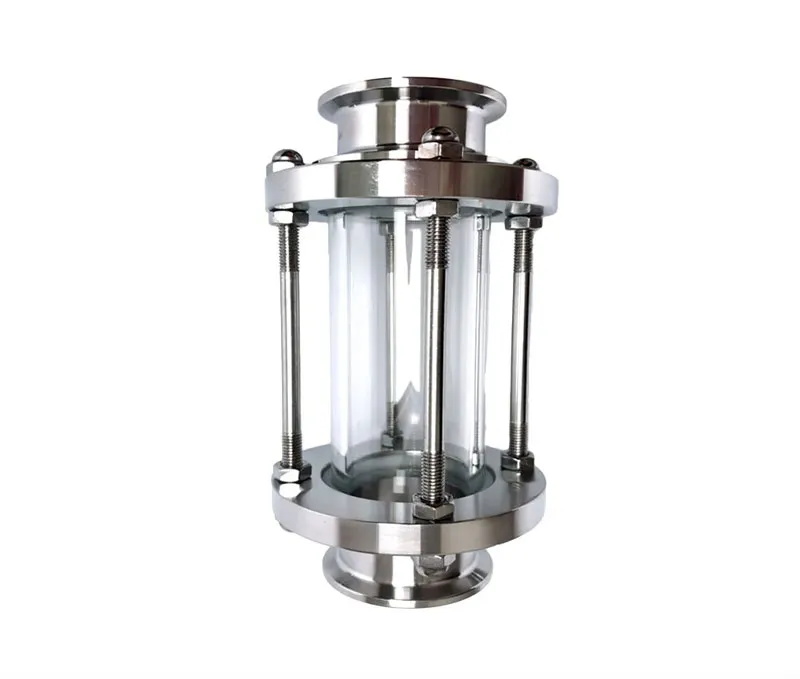

A tri clamp is a mechanical coupling used to join two pieces of tubing, valves, pumps, or other components in a piping system. Unlike traditional threaded or welded connections, it relies on a three-part design for secure, leak-free bonding without tools, making it ideal for environments that require frequent cleaning, inspection, or component replacement. The name "tri clamp" originates from its three primary components: two flanged ends (ferrules), a sealing gasket, and a metal clamp that holds them together.

Key Components of a Tri Clamp System

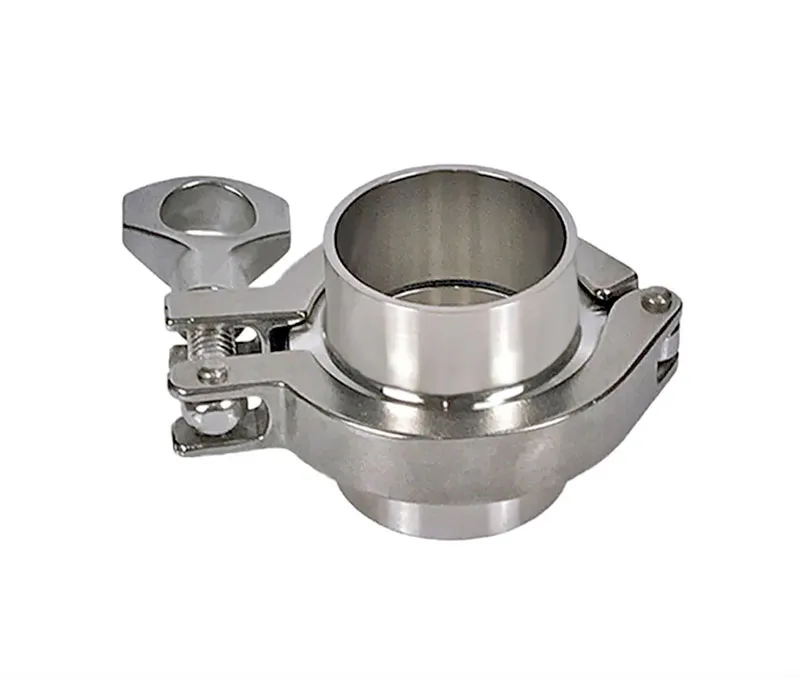

1. Ferrule (Flanged Ends)

• Design: Each ferrule is a short length of pipe with a precision-machined, beveled or flat flange at one end. The flange features a raised circular ridge (conical or flat) that aligns with the gasket and provides a seating surface.
• Materials: Typically made from 316L stainless steel (for corrosion resistance) or other hygienic materials like aluminum or plastic, depending on the industry.
• Function: The ferrules are welded or clamped to the pipeline or attached to equipment (e.g., valves, filters) to create a standardized connection point.

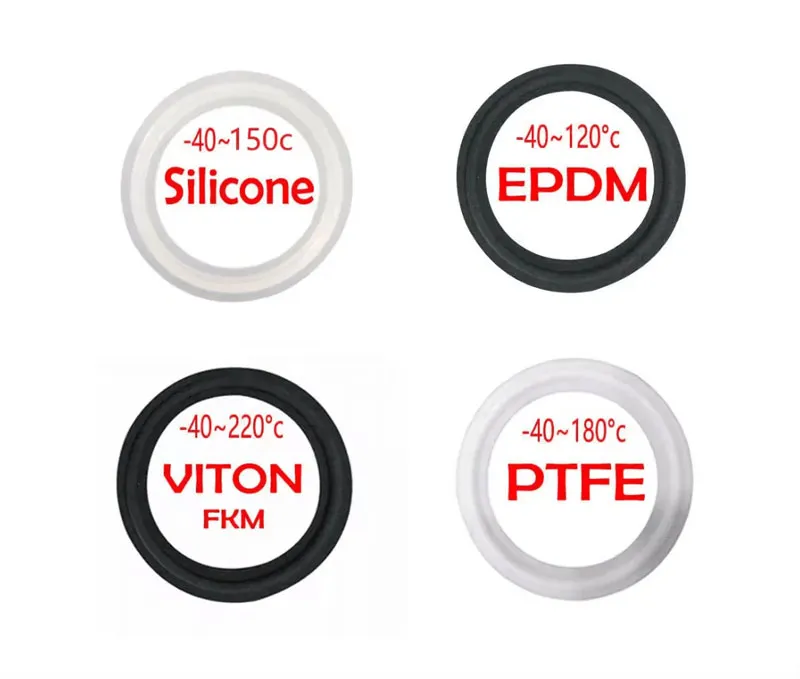

2. Gasket

• Design: A circular ring made of elastomeric materials like silicone, EPDM, or Viton, designed to fit between the two ferrules. It may have a convex, flat, or conical profile to match the ferrule’s flange shape.
• Function: Creates a hermetic seal between the ferrules, preventing leaks and ensuring no contamination enters or exits the system. Gaskets are available in various grades to withstand chemicals, high temperatures, or sterile conditions.

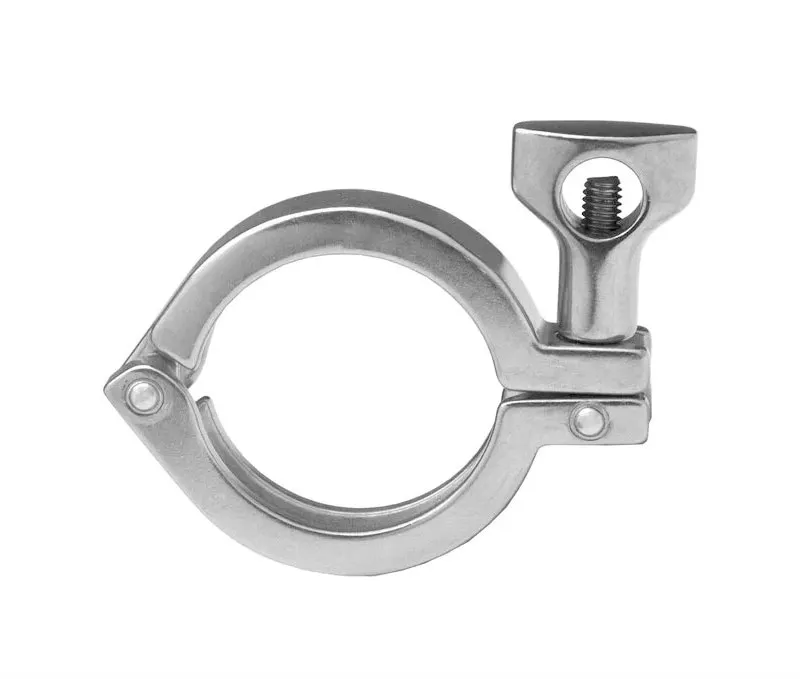

3. Clamp

• Design: A metal device, usually stainless steel, with a hinged or split-ring structure that wraps around the ferrules’ flanges. It features a tightening mechanism, such as a screw, lever, or cam, to apply uniform pressure.
• Function: Secures the ferrules and gasket together, ensuring the seal remains tight under pressure, vacuum, or thermal expansion.

How Tri Clamps Work

1. Assembly:

   • Align the ferrules so their flanges face each other, with the gasket seated in the groove or against the raised ridge of the flanges.

   • Place the clamp around the outer edge of the flanges and tighten the mechanism until the gasket is compressed evenly.

2. Sealing Principle:

   • The gasket is compressed between the two ferrules, creating a barrier that prevents fluid or gas leakage. The design ensures no dead spaces or crevices where contaminants could accumulate, meeting "clean-in-place" (CIP) and "sterilize-in-place" (SIP) requirements.

3. Disassembly:

   • Loosen the clamp, and the ferrules can be separated quickly for maintenance, inspection, or replacement of components or gaskets.

Core Applications of Tri Clamps

Tri clamps are indispensable in industries where hygiene, safety, and operational efficiency are paramount:

1. Food & Beverage Industry

• Connecting tanks, pumps, filters, and pasteurizers in dairy, breweries, and juice production.
• Ensuring easy disassembly for cleaning between batches to prevent cross-contamination.

2. Pharmaceutical & Biotechnology

• Used in sterile processing lines for drugs, vaccines, and biologic manufacturing.
• Compliance with FDA, cGMP, and EU MDR standards, as the design eliminates particle traps and allows for rigorous sterilization.

3. Chemical & Petrochemical

• Handling corrosive fluids or high-purity chemicals, where 316L stainless steel components resist degradation.
• Quick connection/disconnection for maintenance in complex processing systems.

4. Cosmetics & Personal Care

• Manufacturing lines for lotions, creams, and fragrances, requiring contamination-free environments.

5. Water Treatment & Beverage Dispensing

• Drinking water systems, RO filtration, and draft beer lines, where hygiene and leak prevention are critical.

Advantages of Tri Clamps

1. Quick Installation & Maintenance

• No tools are required for assembly or disassembly, reducing downtime during cleaning or component replacement. A single clamp can be tightened or loosened in seconds.

2. Superior Sealing Performance

• Uniform gasket compression ensures leak-free operation under pressure (up to 100+ PSI) or vacuum, even with temperature fluctuations.

3. Hygienic Design

• Smooth surfaces, no threaded joints, and minimal crevices eliminate bacterial growth or product buildup, making them ideal for sanitary applications.

4. Durability & Corrosion Resistance

• Stainless steel components and high-quality gaskets withstand harsh chemicals, steam sterilization, and frequent cleaning with caustic agents.

5. Flexibility & Standardization

• Available in multiple sizes (e.g., 1/2" to 12") and compliant with international standards (ASME BPE, DIN 11864, ISO 2852), ensuring compatibility across equipment from different manufacturers.

Standards and Specifications

To ensure interchangeability and performance, tri clamps adhere to specific industry standards:

• ASME BPE (Bioprocessing Equipment)：Defines dimensions and surface finishes for biotech and pharmaceutical applications.

• DIN 11864：A European standard for clamp connections in sanitary systems.

• ISO 2852：Specifies dimensions for clamp couplings, gaskets, and clamps.

• 3A Sanitary Standards：Certifies components for use in dairy and food processing.

Installation Tips for Optimal Performance

1. Align Ferrules Properly：Ensure the flanges are parallel to avoid uneven gasket compression and leaks.

2. Use the Right Gasket：Select a gasket material compatible with the fluid (e.g., EPDM for water, Viton for oils) and rated for the operating temperature and pressure.

3. Tighten Evenly：Apply consistent pressure to the clamp to avoid warping the flanges or damaging the gasket.

4. Inspect Regularly：Check for gasket wear, corrosion on clamps, or misalignment during routine maintenance.

Conclusion

The tri clamp is a testament to engineering simplicity meeting industrial rigor. Its three-piece design balances ease of use with sanitary performance, making it the go-to solution for industries where cleanliness, reliability, and efficiency are non-negotiable. Whether connecting pipelines in a brewery, sterilizing equipment in a pharmacy, or processing chemicals in a refinery, tri clamps deliver on their promise of secure, hygienic, and hassle-free connections. By understanding their components, applications, and best practices, operators can maximize system uptime, minimize contamination risks, and ensure compliance with even the strictest industry standards.
