In industrial systems, plumbing networks, and manufacturing processes, valves serve as the "control core" that regulates fluid flow, pressure, and direction. Choosing the right type of valve not only ensures operational efficiency but also prevents leaks, reduces energy waste, and extends the lifespan of the entire system. With a wide variety of valves available on the market, understanding their unique characteristics and application scenarios is crucial for making informed decisions. Below, we will delve into four common and essential valve types: Butterfly Valve, Ball Valve, Check Valve, and Pressure Relief Valve.
The Butterfly Valve is a lightweight and compact valve that gets its name from its disk-shaped closure element, which rotates like a butterfly’s wing to control flow. Its working principle is simple: a central shaft connects the disk to an external actuator, and rotating the shaft (90 degrees for full open/close) adjusts the disk’s position to allow, restrict, or block fluid passage.
One of the most notable advantages of Butterfly Valves is their cost-effectiveness—they are typically more affordable than other valve types with similar flow capacities. Additionally, their compact design makes them ideal for installations where space is limited, such as in HVAC systems, water treatment plants, and food processing lines. It’s worth noting that Butterfly Valves excel in regulating large volumes of fluids, though they may not be the best choice for applications requiring ultra-precise flow control or handling highly abrasive materials.
Union Type Stainless Steel Butterfly Valve
When it comes to fast, leak-tight on-off control, the Ball Valve stands out as a top choice. This valve features a spherical closure element (the "ball") with a central bore—when the ball is rotated 90 degrees, the bore aligns with the valve’s inlet and outlet to allow flow, and rotating it back blocks the passage completely.
The key strengths of Ball Valves lie in their reliability and durability. The spherical design minimizes friction between the ball and the valve seat, reducing wear and tear and ensuring a long service life. They also provide excellent sealing performance, even after long periods of inactivity, making them suitable for critical applications like oil and gas pipelines, chemical processing, and residential plumbing. Ball Valves are available in a range of materials, including brass, stainless steel, and PVC, allowing them to handle everything from clean water to corrosive chemicals. While they are primarily used for on-off control, some specialized Ball Valves (such as V-port ball valves) can also be used for basic flow regulation.
Stainless Steel Female Ball Valve
Backflow can cause serious problems in fluid systems, such as contaminating potable water supplies or damaging pumps and equipment. The Check Valve (also known as a non-return valve) is designed specifically to address this issue by allowing fluid to flow in only one direction.
Check Valves operate automatically, without the need for manual or electrical actuation. They use the pressure of the flowing fluid to open the valve (pushing a closure element like a flap, disk, or spring-loaded piston out of the way) and rely on gravity or a spring to close the valve when flow reverses. Common applications include water heaters (to prevent hot water from flowing back into cold water lines), sump pumps, irrigation systems, and industrial pipelines. Different types of Check Valves are tailored to specific needs—for example, swing check valves are ideal for low-pressure systems, while spring-loaded check valves work well in high-pressure or vertical installations. Choosing the right Check Valve is essential to avoid issues like water hammer (a sudden pressure surge caused by rapid valve closure) and ensure system safety.
Sanitary Tri Clamp Check valve

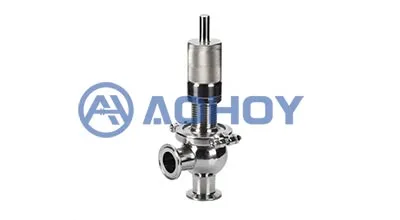

Every fluid system has a maximum safe operating pressure, and exceeding this limit can lead to catastrophic failures, including explosions and equipment damage. The Pressure Relief Valve (PRV) is a critical safety component that protects systems by automatically releasing excess pressure when it reaches a predetermined level.
Pressure Relief Valves work by using a spring-loaded or pilot-operated mechanism to keep the valve closed during normal operation. When the system pressure exceeds the valve’s set pressure, the force of the fluid overcomes the spring tension (or pilot pressure), lifting the valve seat and releasing the excess fluid (usually to the atmosphere or a safe discharge line). Once the pressure drops back to a safe level, the valve closes automatically. These valves are mandatory in applications like boilers, pressure vessels, hydraulic systems, and chemical reactors. It’s important to note that Pressure Relief Valves must be calibrated regularly to ensure they activate at the correct pressure—improper calibration can render them ineffective and put the entire system at risk.
Each type of valve—Butterfly, Ball, Check, and Pressure Relief—plays a unique and irreplaceable role in fluid systems. Whether you need cost-effective flow control, reliable on-off operation, backflow prevention, or overpressure protection, selecting the valve that matches your application’s pressure, temperature, fluid type, and performance requirements is key to optimizing efficiency and safety.
