Sample Valve is mainly applied to extract the sample from tank or pipeline. They can also be assembled at the bottom of the tank or piping to drain away from the remains. Constructed from hygienic stainless steel.

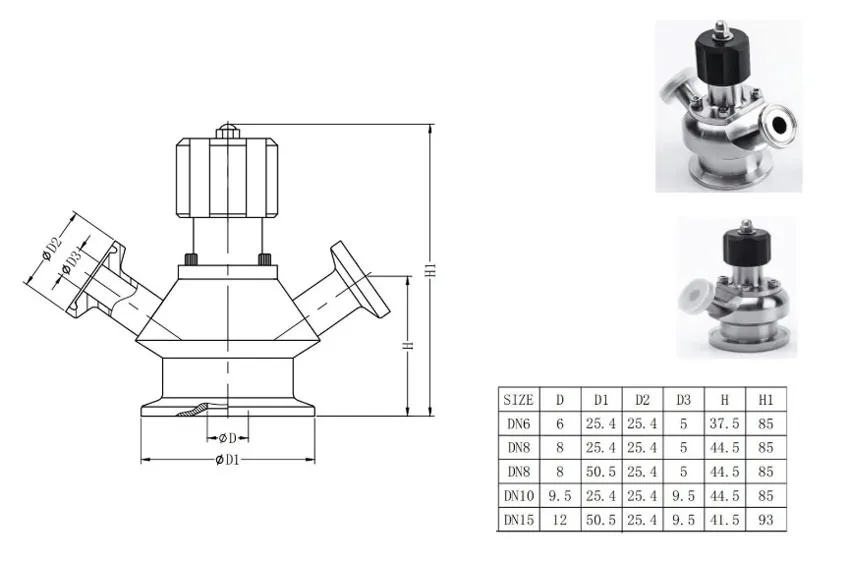

| Size | 1/2″-3/4″. |
| Body&Disc Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | 14°F to 248°F (-10°C to 120°C), Max 220 ℃ (PTFE) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, PTFE |

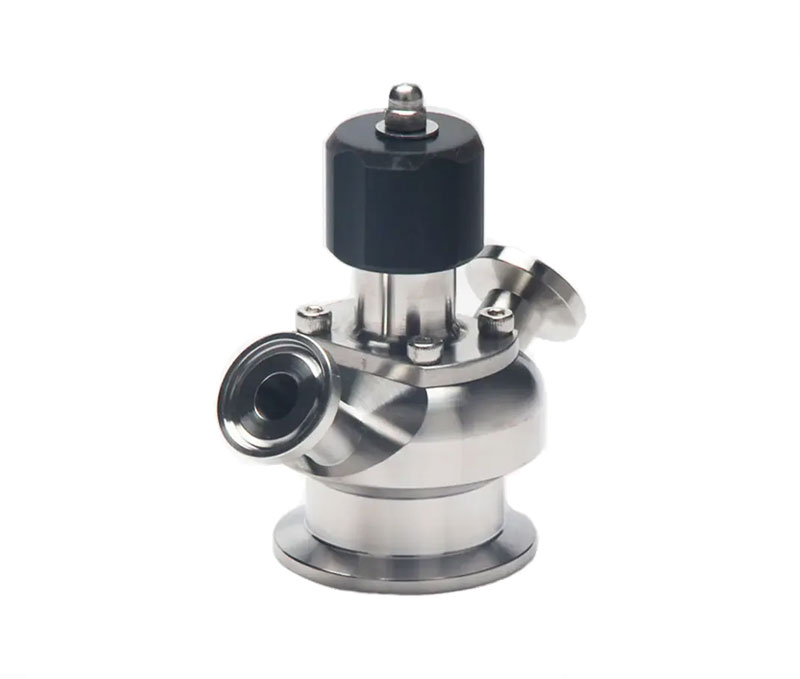

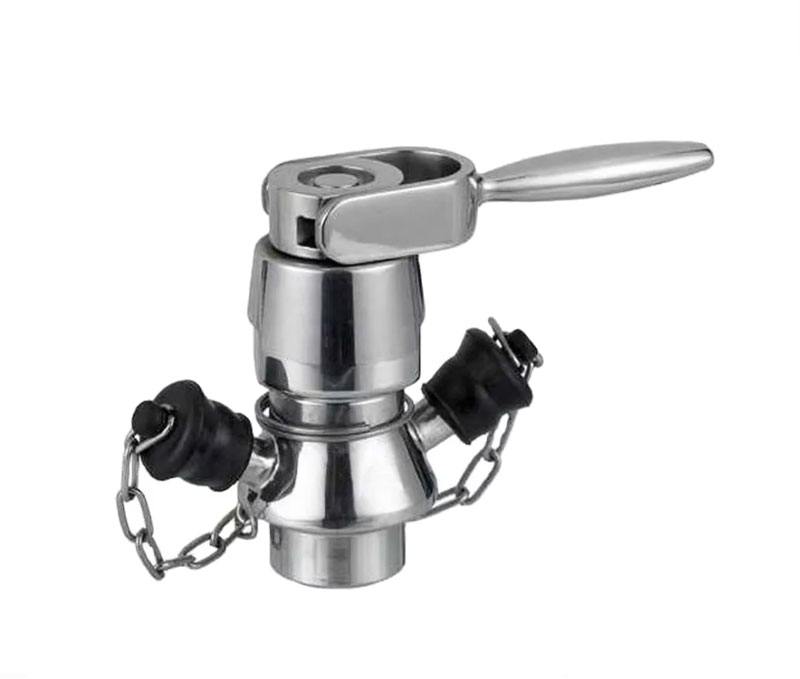

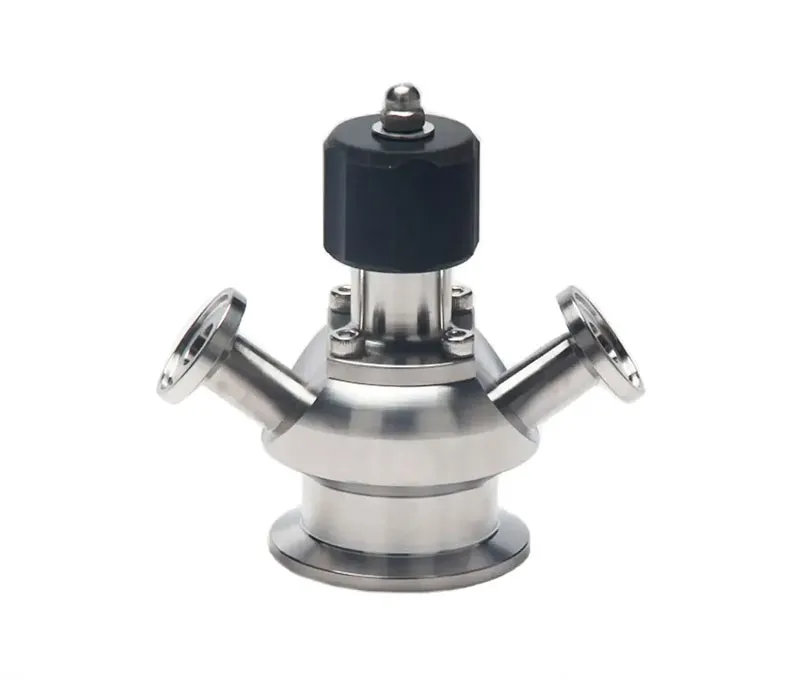

Tank Aseptic Sampling Valve is a specialized valve designed for collecting sterile samples from tanks or vessels in industries such as food & beverage, pharmaceuticals, and biotechnology. These valves ensure that the sampling process maintains sterility, preventing contamination of both the sample and the tank contents.
Key Features of a Tank Aseptic Sampling Valve:
Material:
Typically made of high-grade stainless steel (SS316L) , Use of food-grade and chemical-resistant materials such as PTFE, EPDM, or silicone.
Hygienic and Aseptic Design:
Crevice-free, smooth surfaces to prevent bacteria growth. Steam-sterilizable or autoclave-compatible designs for aseptic sampling.
Operation:
Designed for precise and easy sampling, often using a push-button, lever, or rotating mechanism. Allows for small, controlled sample extraction without disrupting the tank environment.
Applications:
Brewing and Beverage Production: For sterile sampling of beer, wine, or juices during fermentation or storage. Pharmaceuticals and Biotech: To sample cultures, media, or other sterile products. Dairy and Food Processing: Collecting samples from tanks while ensuring sterility.
Advantages:
Maintains sterility and cleanliness in sensitive applications. Minimizes waste and sample contamination. Long service life due to robust materials and construction.
