• Plastic wheel or stainless steel wheel
• Material: AISI304(1.4301)/316L(1.4404)
• Internal surface Ra 0.8 μm-0.5μm
• External surface polishing finish, matt finish or sand-blasting finish
• Height: 65- 150mm
Application

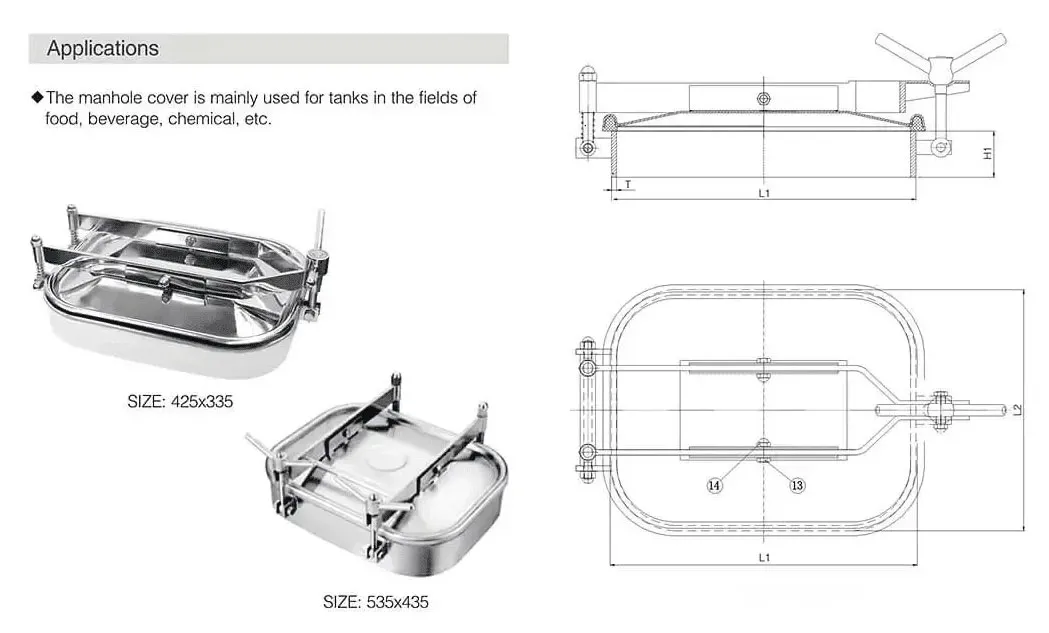

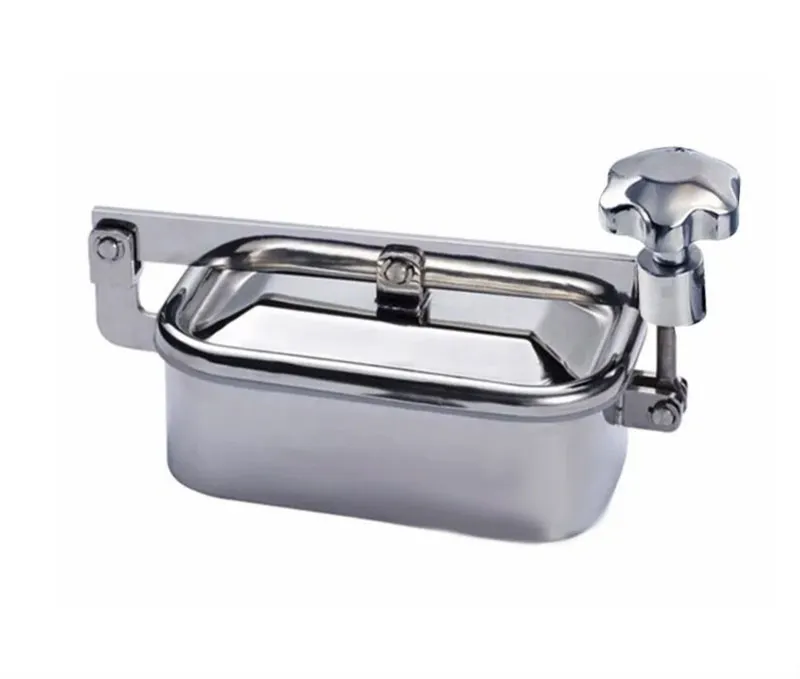

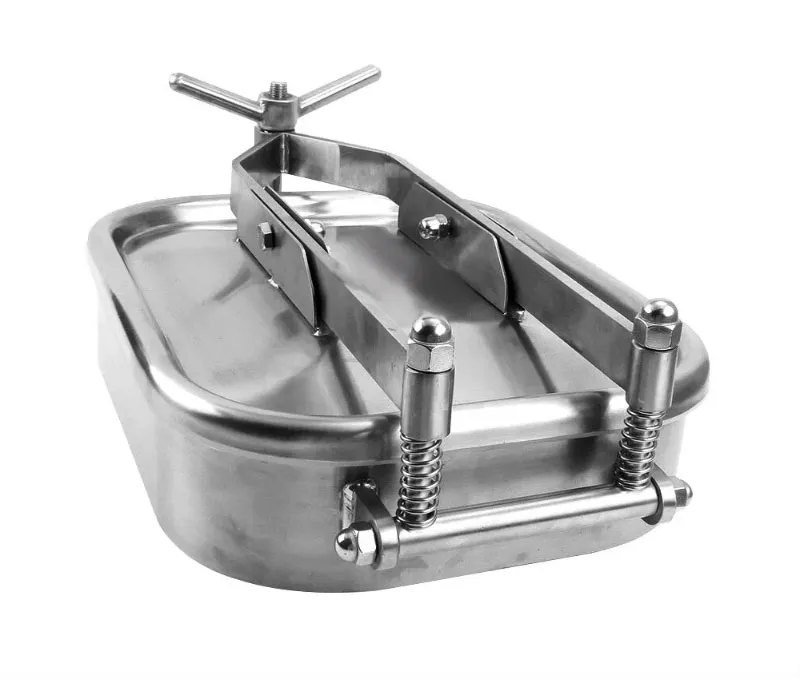

Manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.
Materials
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, FRM
Manhole seat and gasket comply with FDA 21CFR177.2600

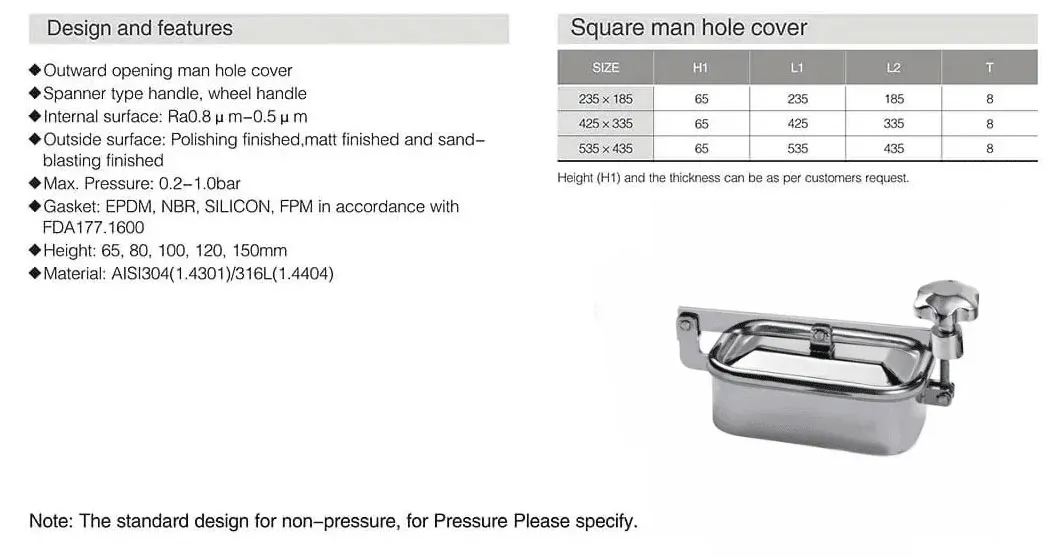

Standard Design
Available in size: 200mm to 600mm
Standard thickness: 6mm-8mm
Outward Opening
Self-sealing double lip seal to prevent fluids spraying out.
Technical Specification
Max. pressure: 1 bar
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: mirror and matt inside outside
