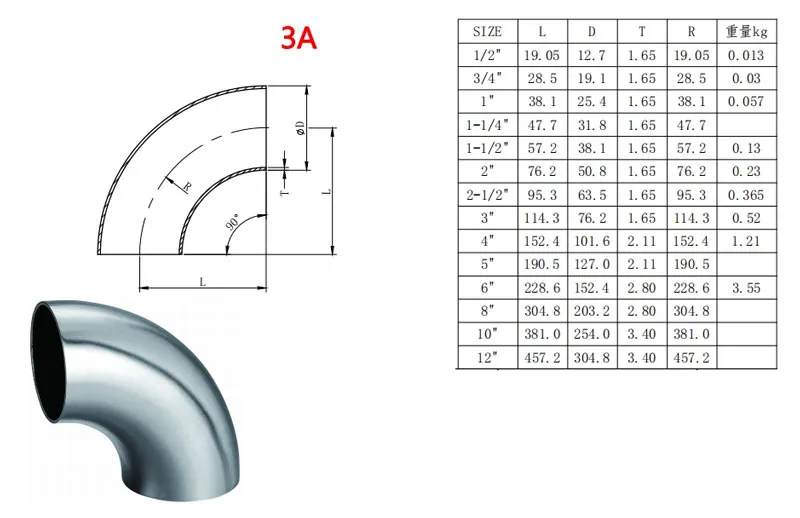

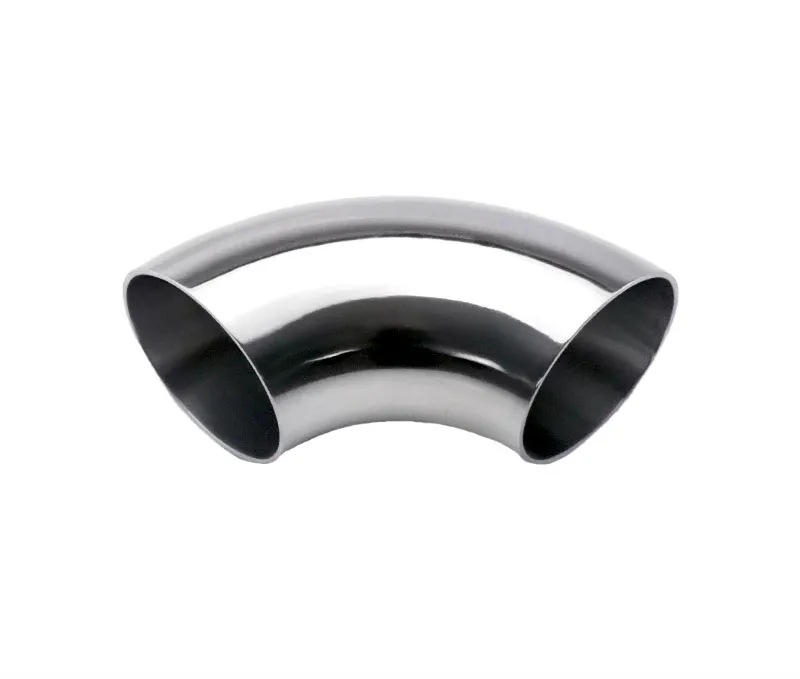

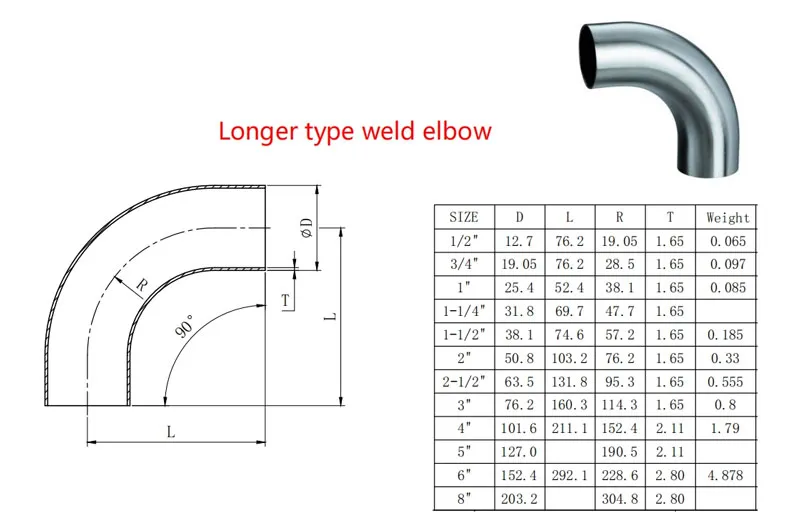

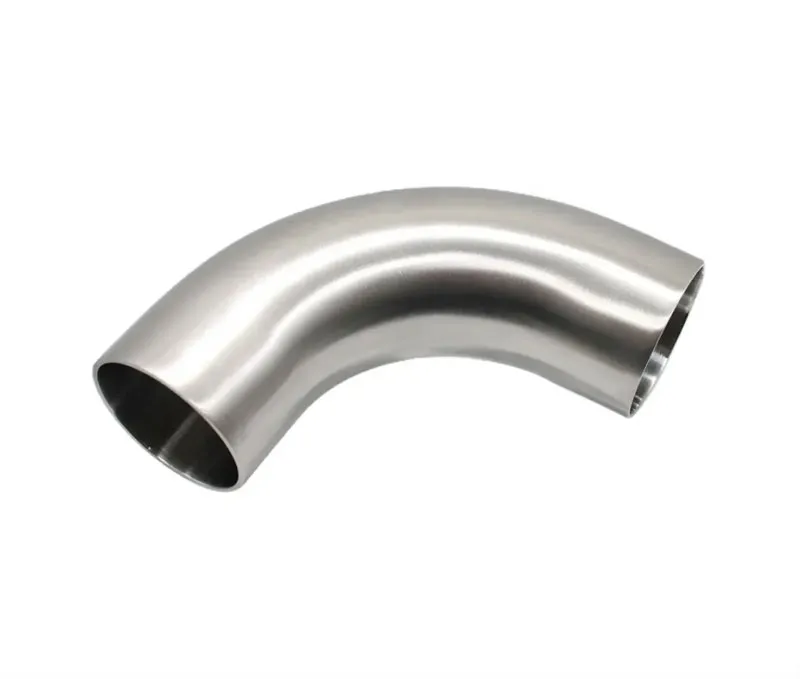

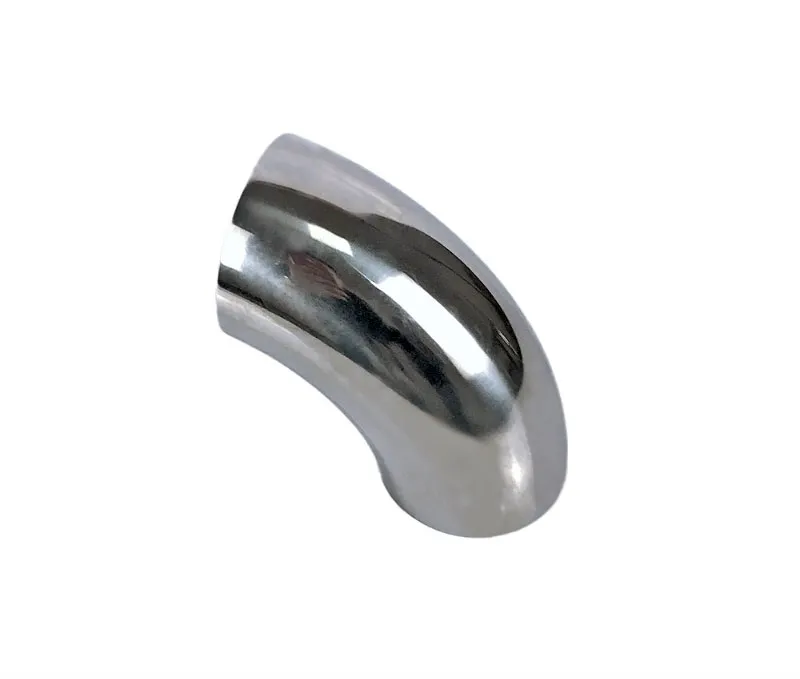

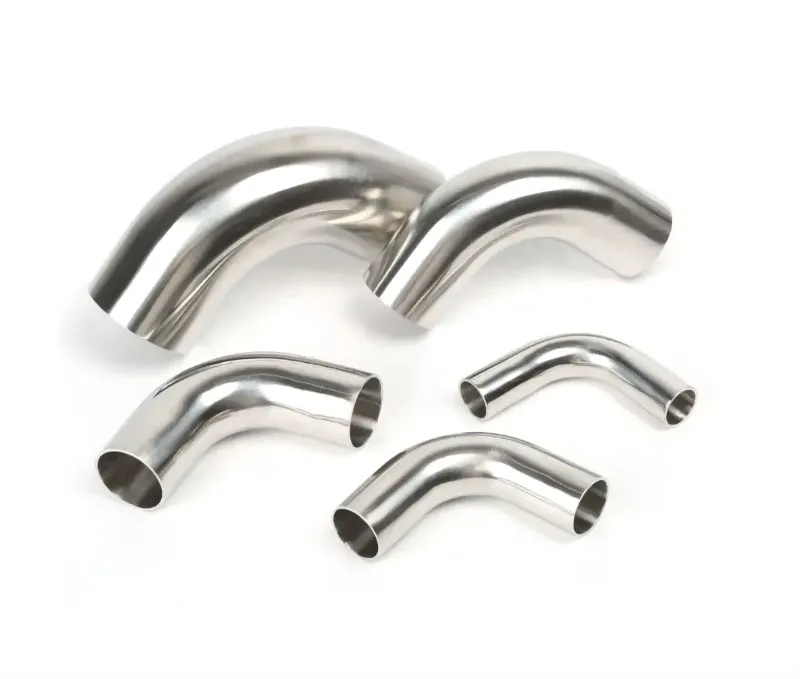

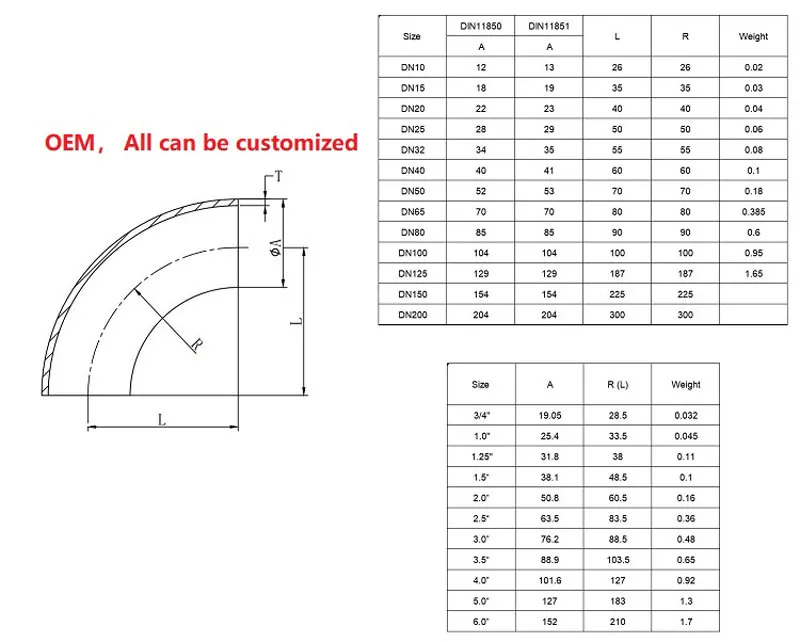

Elbow is fitting that changes the direction of the pipeline. According to the angle, there are three commonly used elbows of 45°, 90° and 180°.They usually have welded connections, clamp connections, and Union connections.
Product Specifications
1. Grade: SUS304,SUS316L
2. Size: DN15- DN100
3. Standard: GJB, DIN, BPE, DB, JIS, ISO, FB
4. Certification: CE,ISO,3A
| Material | Stainless Steel 304, 316L |
| Connection type | Butt Weld, Tri-clamp, Union |
| Connection Size | 0.5″ to 12″ |
| Max Pressure | 10bar (145PSI) |
| Surface treatment | Mirror and Matte polishing |
| Standard | DIN11850/DIN11851, SMS, ISO, 3A, ASME BPE |
