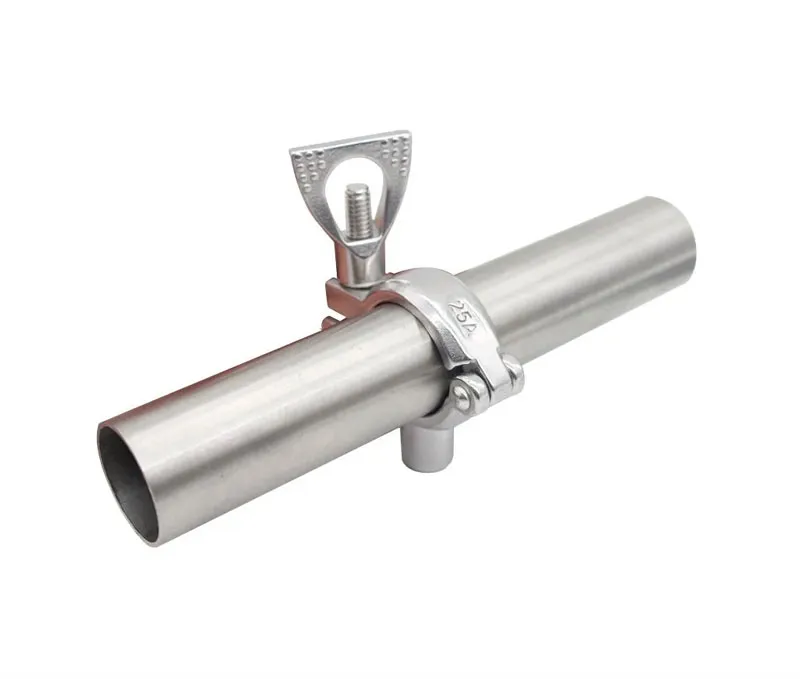

Heavy Duty Tube Bracket Hanger

Name: Heavy Duty Tube Bracket Hanger
Brand: Aohoy
SKU: 00026
Rating: 4.1 (63 reviews)

Aohoy stainless steel 304 Precision casting Tube Bracket clamp for pipe

MaterialStainless Steel 304

Connection typeTri-clamp

Connection Size0.5″ to 6″, 15A-100A

Max Pressure10bar (145PSI)

Get a Quote

Product Description

tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Rreference data

Material	Stainless Steel 304
Connection type	Tri-clamp
Connection Size	0.5″ to 6″, 15A-100A
Max Pressure	10bar (145PSI)

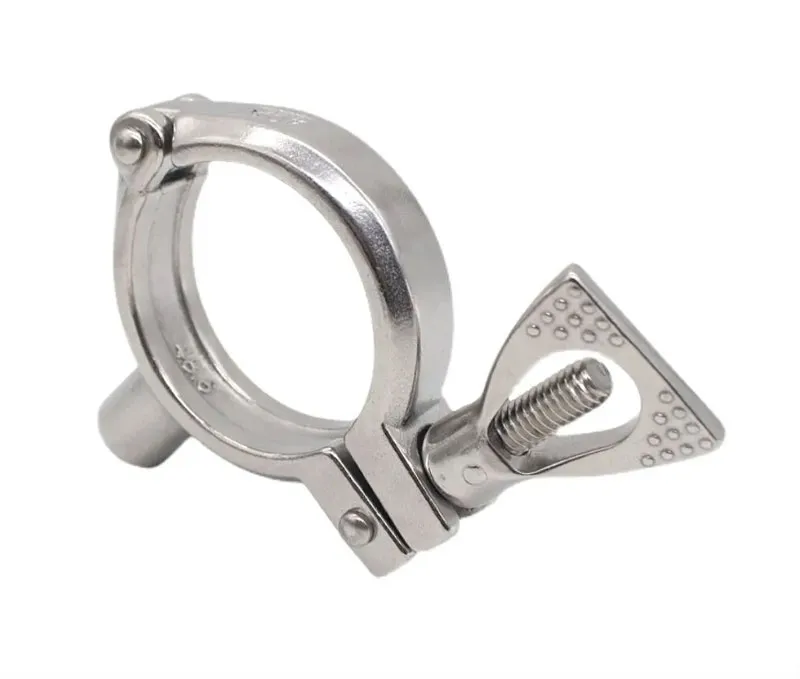

The single-pin clamp with a wingnut is made from 304 stainless steel alloy (Also available in 316).

It is used to join two separate tri-clamp ends to one another.

Sizes on this product range from 1/2 inch all the way up to 6 inches in diameter.

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

End connections: Weld or Female

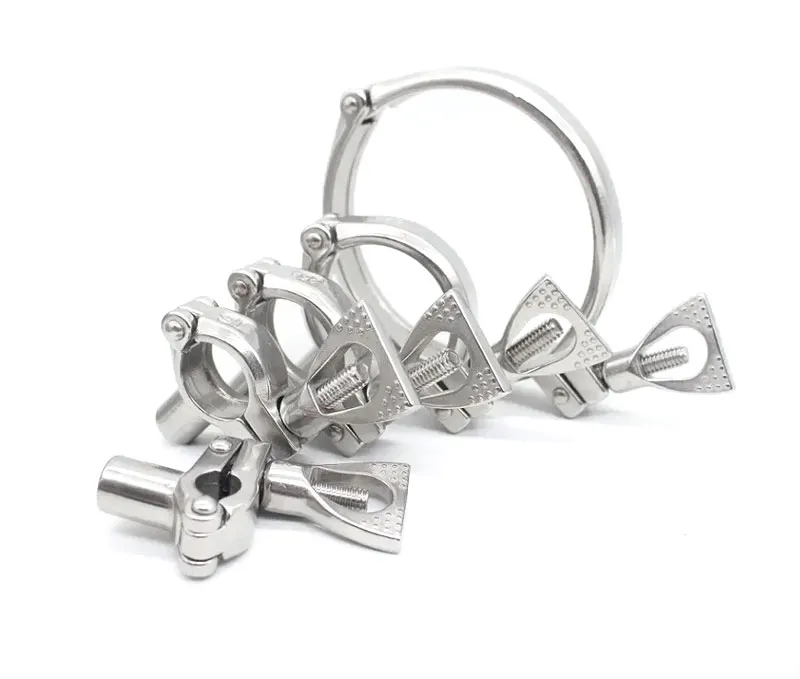

Tube hanger type: Round, Hexagon, with rubber insert
