Sanitary tri-clamp gaskets are used in the Food, Dairy, Beverage, Biotech, Pharmaceutical, and many other Sanitary Process industries to seal clamp connections in sanitary pipe lines.

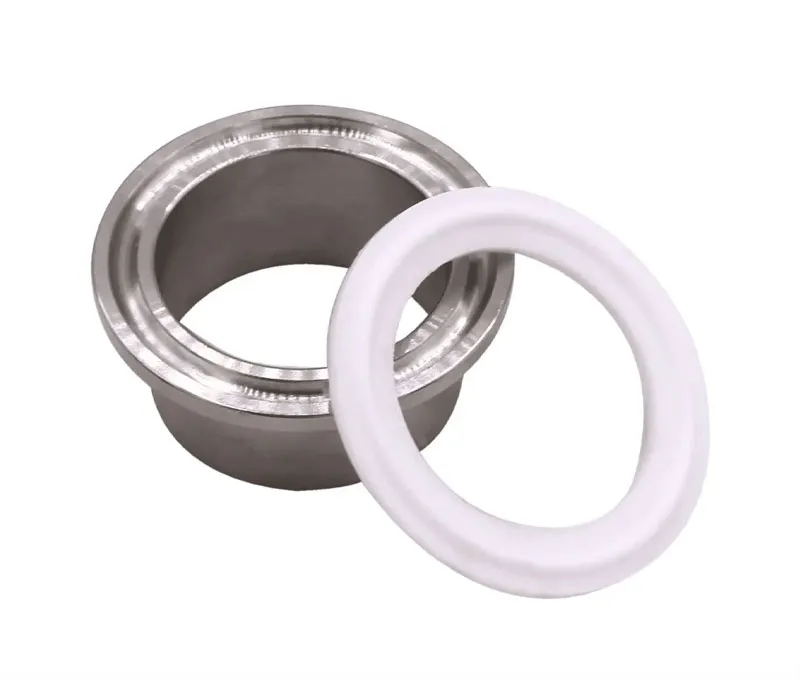

The name Tri-Clamp gasket comes from the Tri-Clover clamp which is used to hold a gasket in place.This made up of stainless steel ferrules with the gasket pressed in between. The clamp goes over the sides of the ferrules and compresses the two together The working temp max is 260℃, it meets FDA standard specification.
| Material | EPDM, Silicone, PTFE, FKM, NBR |
| Connection type | for pipe sealing |

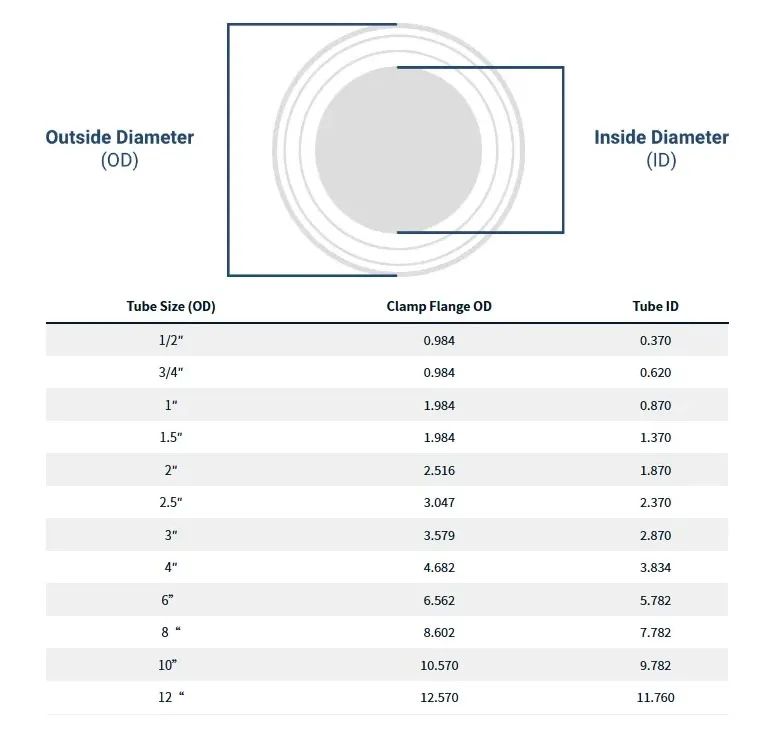

| Connection Size | 0.5″ to 12″ |
| Max Temperature | Up to 220 (depending on the material) |
Sanitary Tri Clamp Gaskets are one of the most common used gaskets today. The gasket of choice through out the sanitary process industries. These are have a wide range of materials. This connection is made up of stainless steel ferrules with the gasket pressed in between. The clamp goes over the sides of the ferrules and compresses the two together. This is a fast, easy, come-together connection
Premium quality Ferrule gasket provides leak-proof Tri-clamp connections.

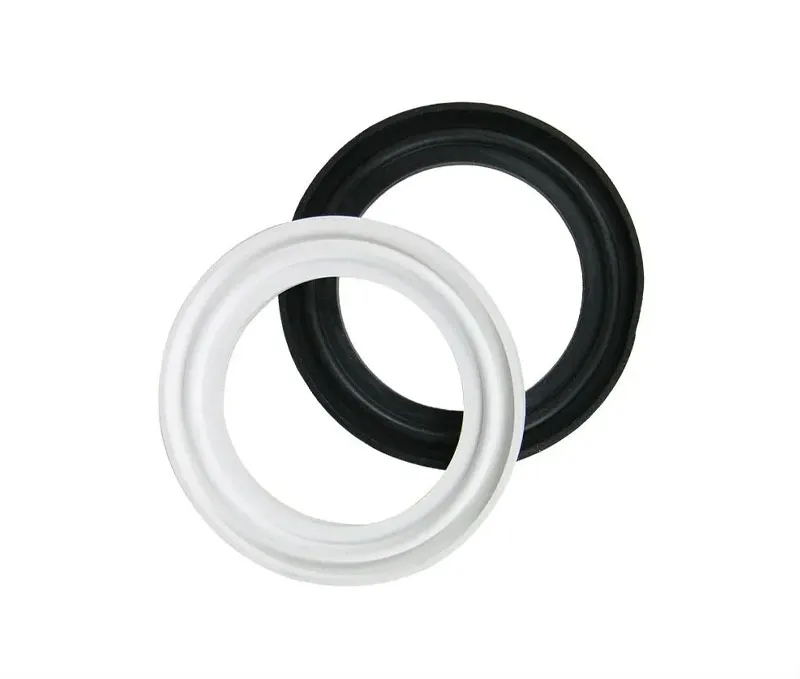

Made of flexible and durable rubber, this TC gasket comes in various colors.
Make sure to position the ring correctly between the two ferrules before locking the clamp.

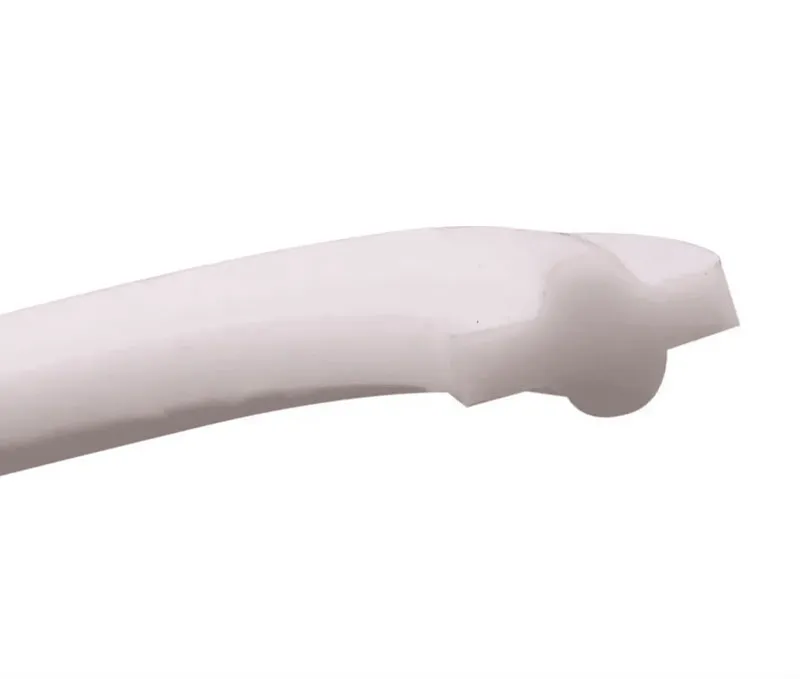

All our gaskets are available in both standard and flanged (lipped type) and be supplied in Buna, Nitrile, Silicone, Viton and PTFE.
We also offer screen gaskets and orifice plates. Size range from 1⁄2”-12”
