sanitary diaphragm valve , specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
| Size | DN15-DN50, 3/4″-3″ |
| Body&Disc Material | AISI 316L, (EN1.4404). |
| Temperature | -25℃ to +250 ℃（PTFE）,14 ~ 248℉ (-10 ~ 120℃), EPDM |
| Max pressure | 145psi (10bar) |
| Seal | EPDM+PTFE or EPDM |
| Body type | T-type tee, U type tee, Mini type, tank bottom type, etc. |

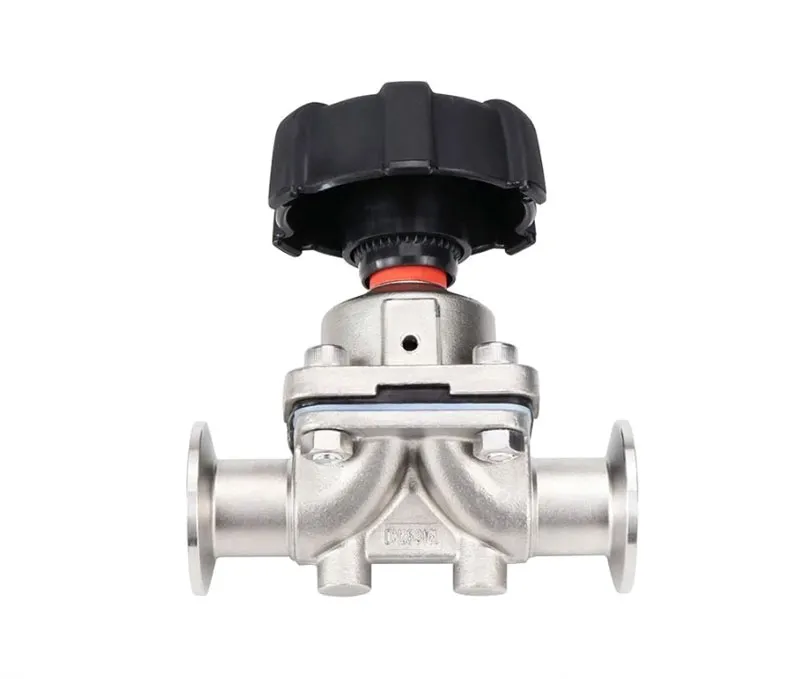

| Manual Operation | Pull handle, Pneumatic |

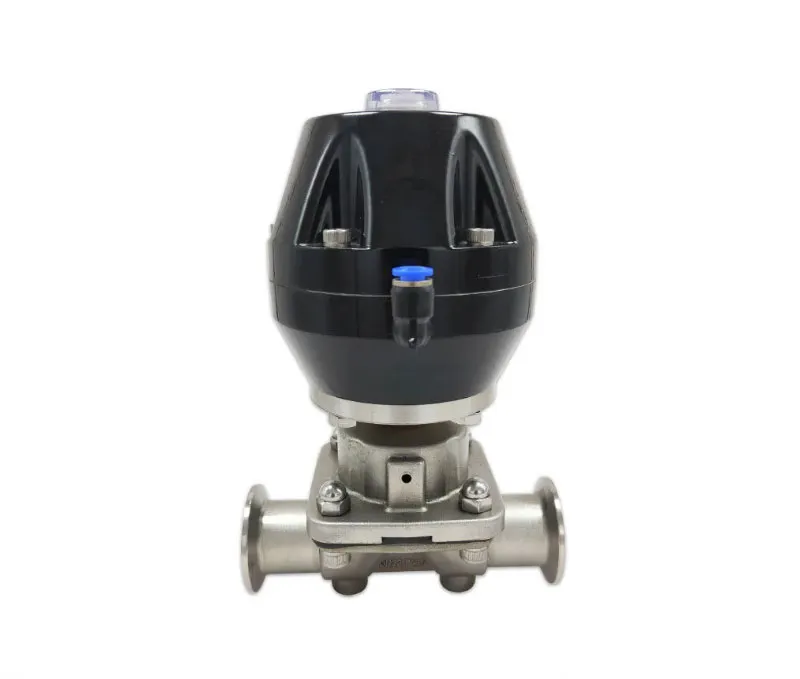

| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Connection type | Clamp End, Thread End, Weld End |
The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉(-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.
