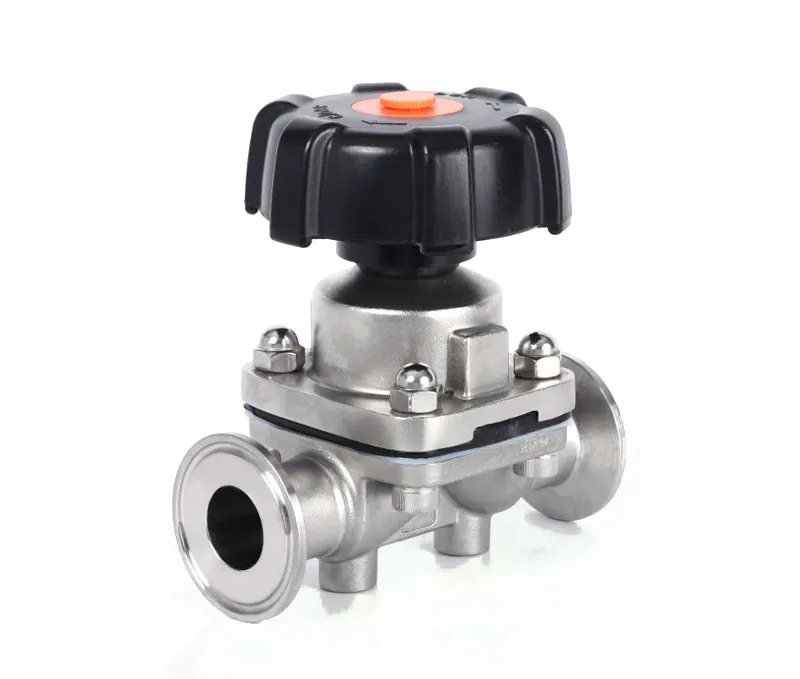

Sanitary Clamp Diaphragm Valve

Sanitary Pneumatic Diaphragm Valve – 316L SS, CIP/SIP-ready, bubble-tight isolation for pharma, food & biotech. Fast-acting, zero contamination. Get quote!
SizeDN15-DN50, 3/4″-3″
Body&Disc MaterialAISI 316L, (EN1.4404).
Max pressure145psi (10bar)
SealEPDM+PTFE or EPDM
Product Description

sanitary diaphragm valve , specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Rreference data

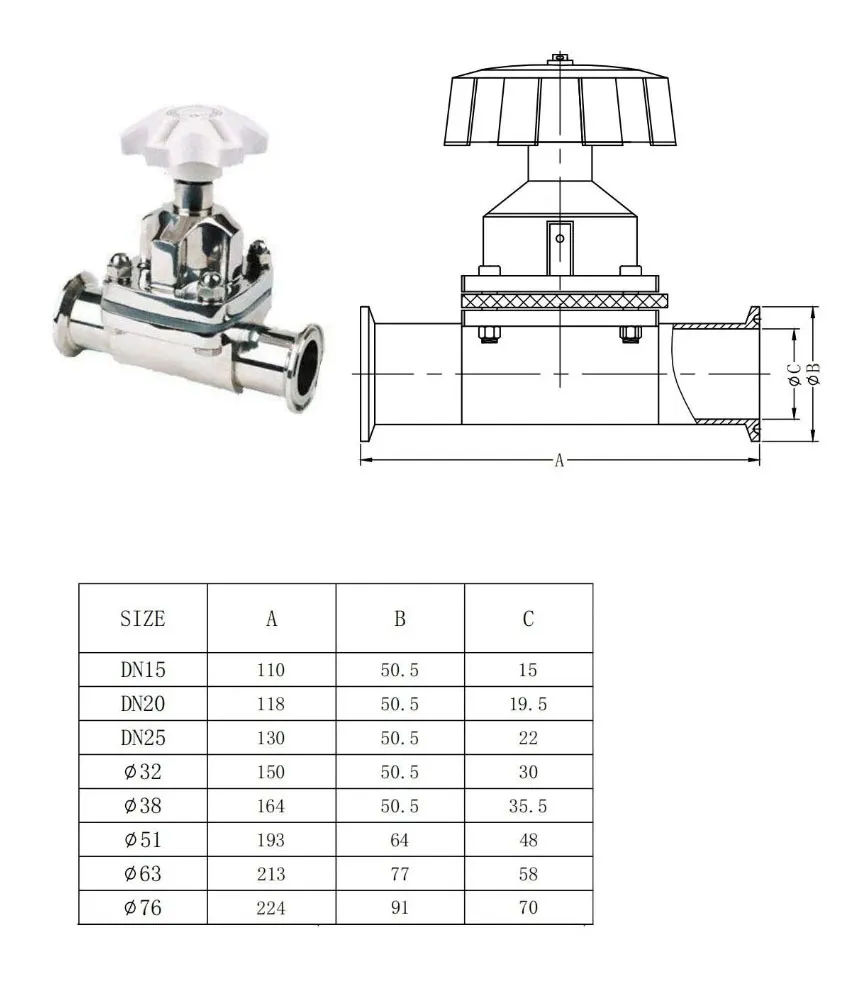

Size DN15-DN50, 3/4″-3″
Body&Disc Material AISI 316L, (EN1.4404).
Temperature -25℃ to +250 ℃(PTFE),14 ~ 248℉ (-10 ~ 120℃), EPDM
Max pressure 145psi (10bar)
Seal EPDM+PTFE or EPDM

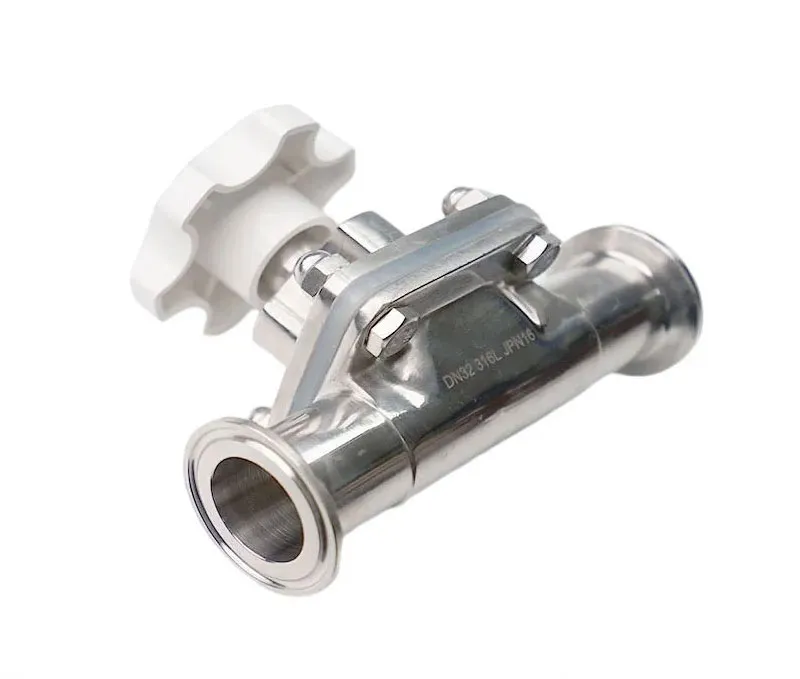

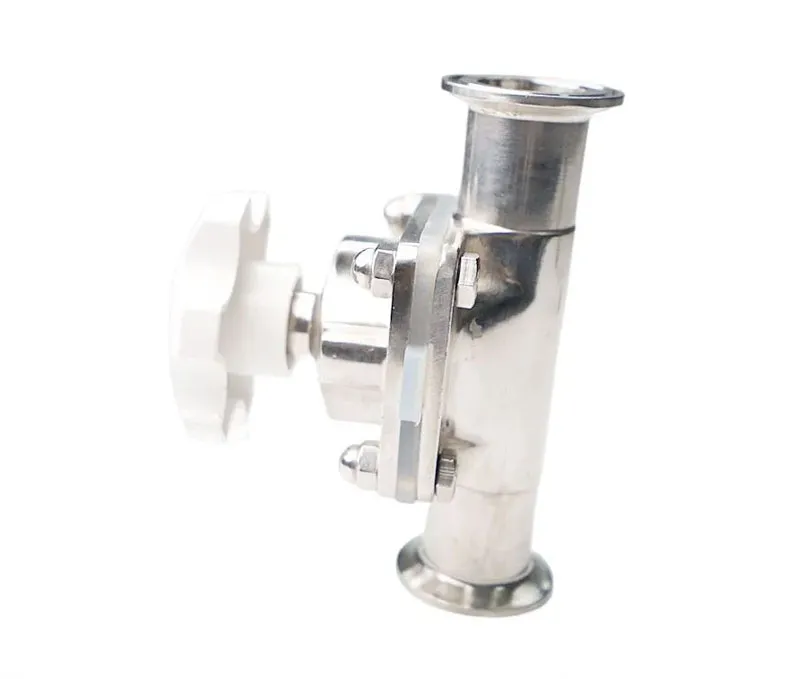

Body type T-type tee, U type tee, Mini type, tank bottom type, etc.
Manual Operation Pull handle, Pneumatic
Pneumatic Operation Compatible with Single-acting or Double-acting Pneumatic actuator
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type Clamp End, Thread End, Weld End

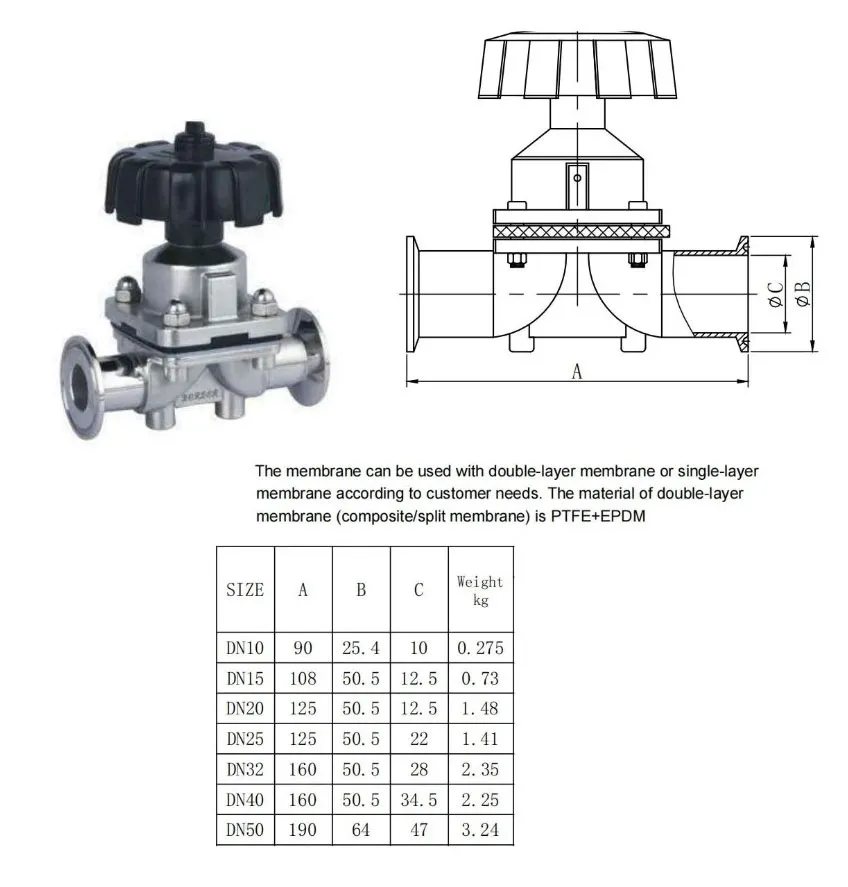

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉(-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.
