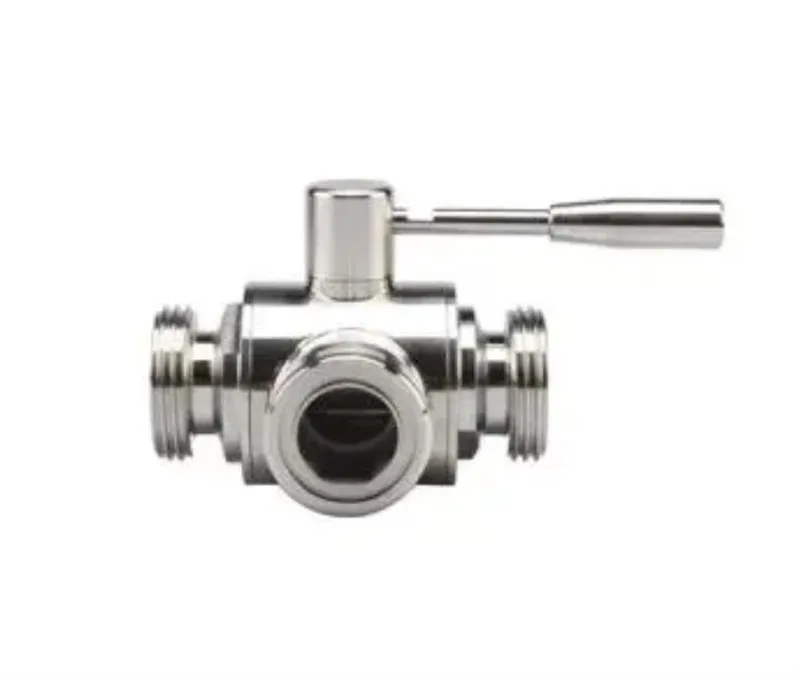

3 Way Ball Valve with Union

Aohoy’s 3-way union ball valves feature T/L-port flow control, leak-proof seals & threaded/union ends. Ideal for chemical, HVAC & water systems.
SizeDN25-DN100, 1/2″-6″
Body & Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Max Temperature430F (220°C)
Max PressureMax. 1000kPa(10 bar)/ 145 psi
Connection TypeTri clamp end, Thread end
Product Description
Application

Three Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. The hygienic design is widely used in the field of food processing, beverages, fruit juices, wine. There are 2 ball cores: L-Port and T-Port.



Technical Specification

Material: AISI 304 or 316L, (EN1.4301/EN1.4404).

Seat Gasket: PTFE

Operating pressure: Max. 1000kPa(10 bar)/ 145 psi

Temperature range: -10°C to 120°C

Actuator

Air pressure: 4-7 Bar

Temperature range: -25°C to 120°C



Standard Design

· Connection: Tri Clamp, Male

· Stanard: 3A, SMS, DIN

· Ball Core: T port or L Port

· Operating : Manual, Pneumatic Actuator, Electric Actuator with or without position sensor and solenoid valve



Ball valves,no matter manually or automatically, the ball valves are used to transfer controlling the materials. Which extensively use to food,beverage,pharmacy,cosmetics and chemical industries.

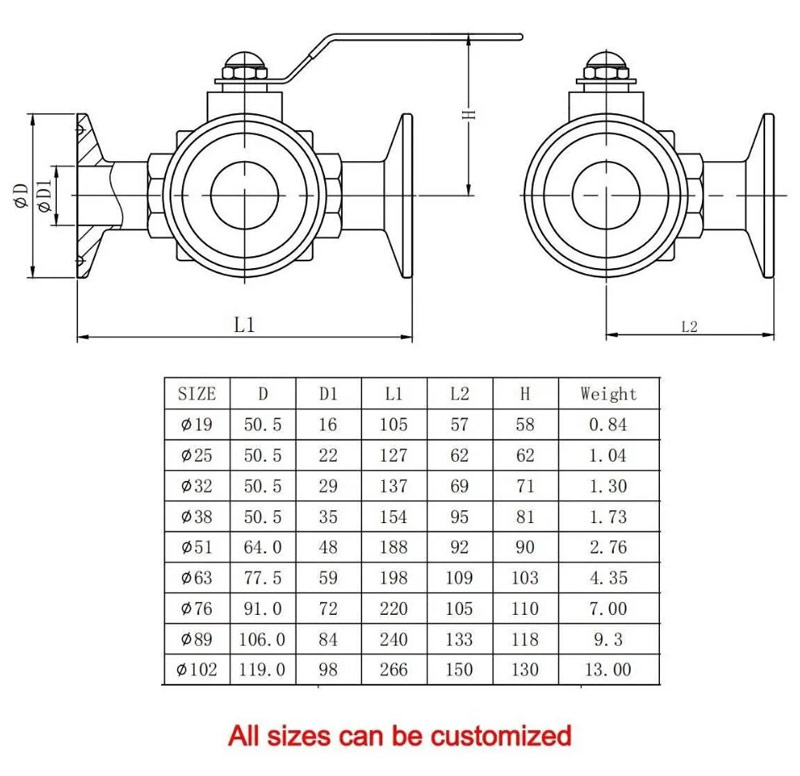

Rreference data
Size DN25-DN100, 1/2″-6″
Body & Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Max Temperature 430F (220°C)
Max Pressure Max. 1000kPa(10 bar)/ 145 psi
Seal PTFE
Manual Operation Pull handle
Pneumatic Operation Compatible with Single-acting or Double-acting Pneumatic actuator
Connection type Tri clamp end, Thread end

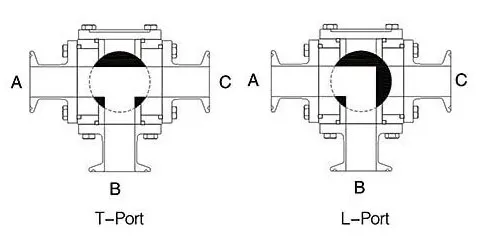

Three-way ball valve has a T-type ball and an L-type ball design.







Sanitary Three Way Ball Valve with hygienic design meet high requirement standard, offers small torque, full degreasing, sealing elastic compensation, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material is Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.
