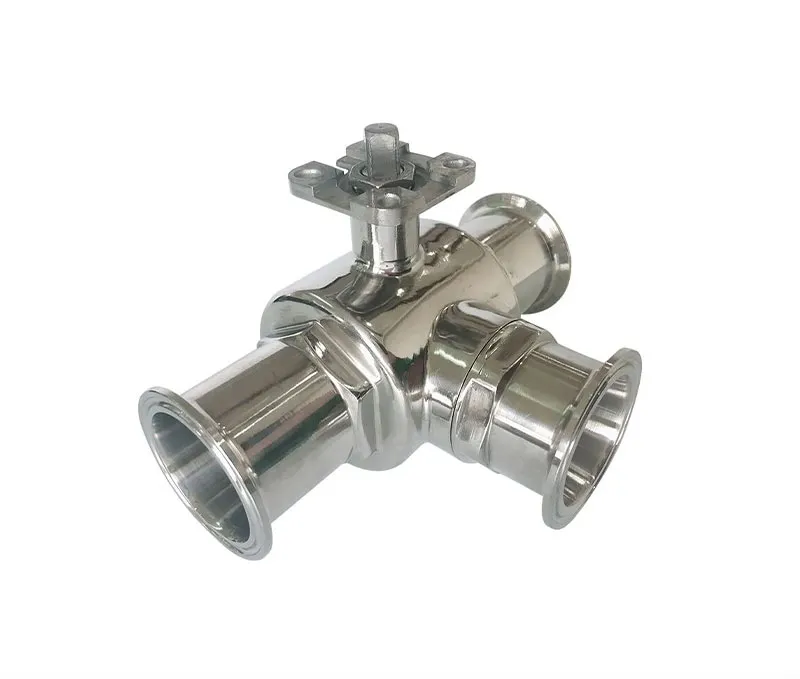

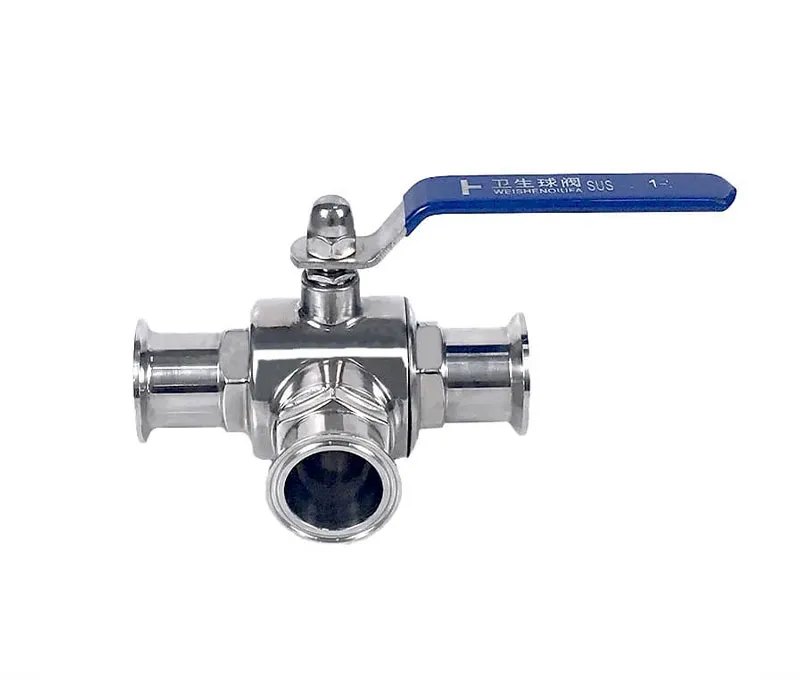

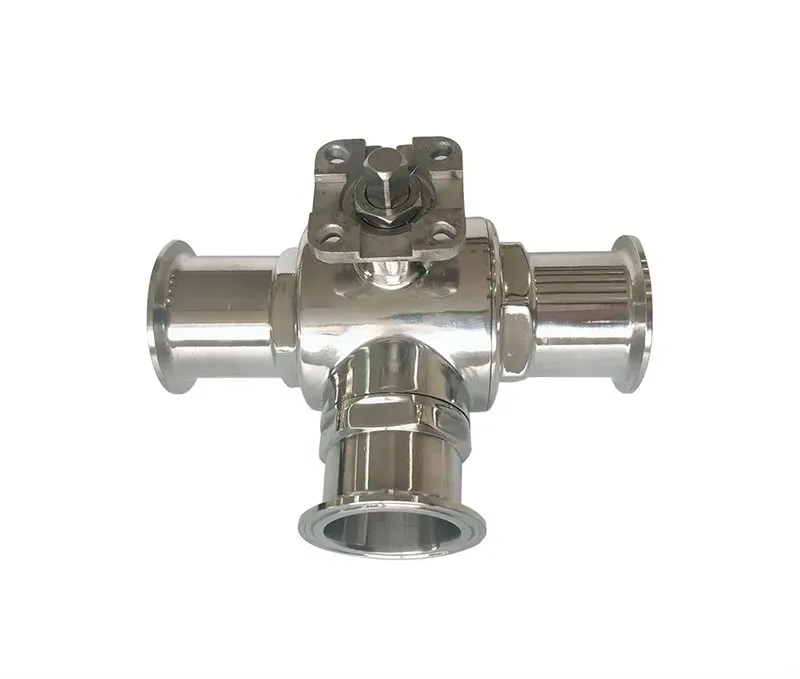

Tri-Clamp 316L Stainless Steel Ball Valve - Full Port, Bi-Directional, Sanitary, FDA/3A Compliant, Blowout-Proof Stem. Features EPDM/PTFE Seals, 1.0MPa (145 PSI) Pressure, 430F (220°C) Temperature. Ideal for Food, Beverage, Pharmaceutical, and Dairy Industries
| Size | DN25-DN100, 1/2″-6″ |
| Body & Disc Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Max Temperature | 430F (220°C) |
| Max Pressure | Max. 1000kPa(10 bar)/ 145 psi |
| Seal | PTFE |
| Manual Operation | Pull handle |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Connection Type | Tri clamp End |

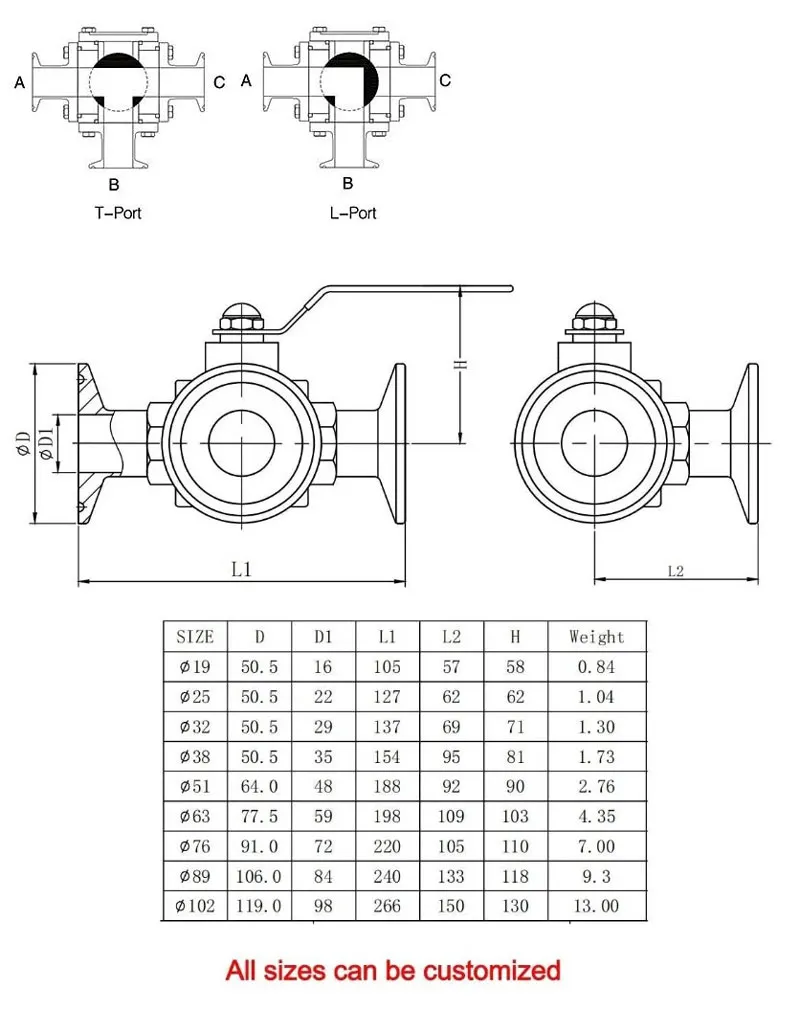

Three-way ball valve has a T-type ball and an L-type ball design.
Sanitary Three Way Non-retention Ball Valve with hygienic design meet high requirement standard, offers small torque, full degreasing, sealing elastic compensation, no retention, no dead angle, easily maintain, with very flexible combination configuration. Body Material is Stainless 304 or 316L, suited to use in water treatment, food & beverage processing, pharmaceutical, daily chemical, industrial fluid applications. Connection End with tri-clover/clamp, weld or thread.
