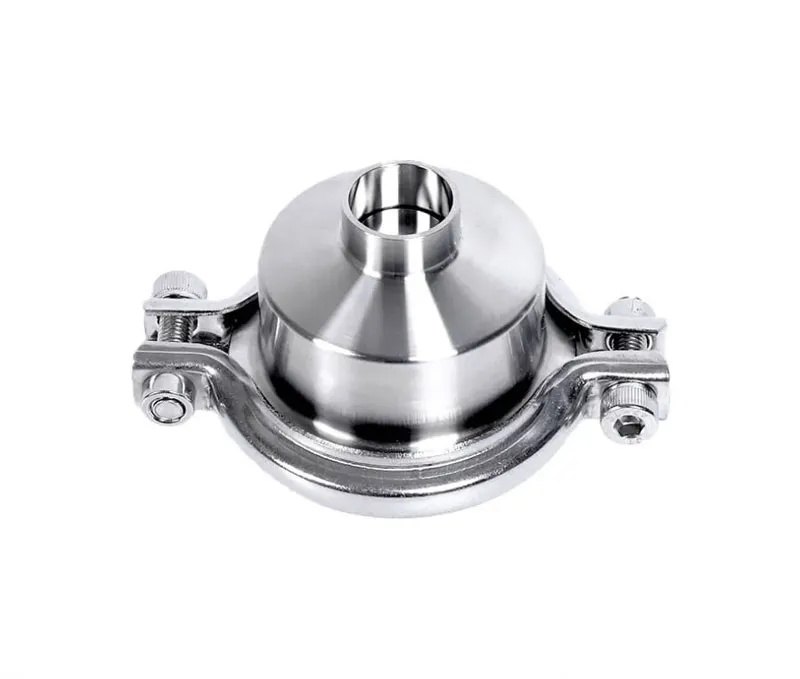

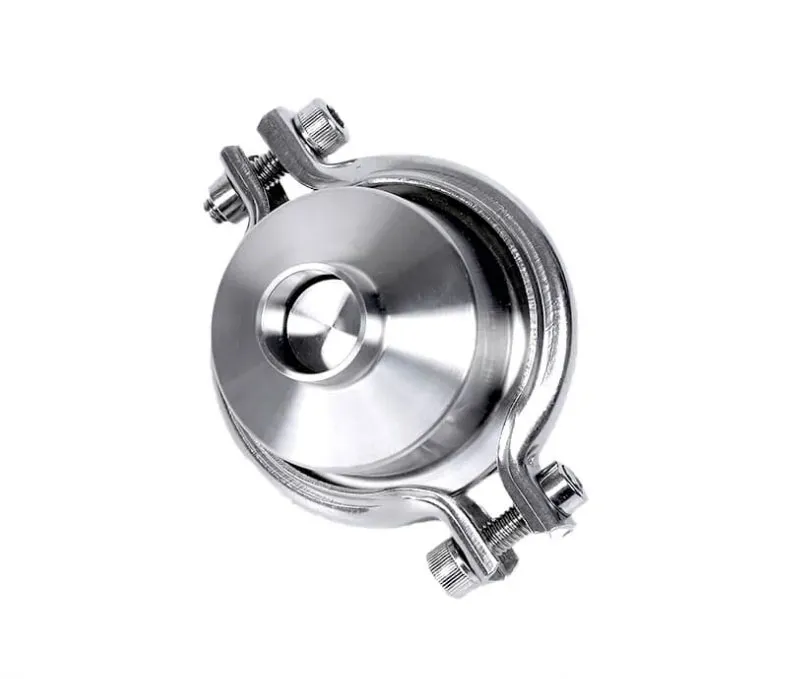

Sanitary Weld Check valve

A check valve opens when the pressure below the valve plug exceeds the pressure above the valve plug and the spring force. The valve close when pressure equalization has been achieved.
SizeDN15-DN100, 1/2″-4″
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature14 ~ 248°F (-10 ~ 140°C) , Silicone EPDM
Max. pressure145 psi (10 bar)
Product Description

Sanitary check valves also named as “non-return valve”, is designed for use in process piping installations to prevent reverse flow. Are a spring check valve with different connection ends.

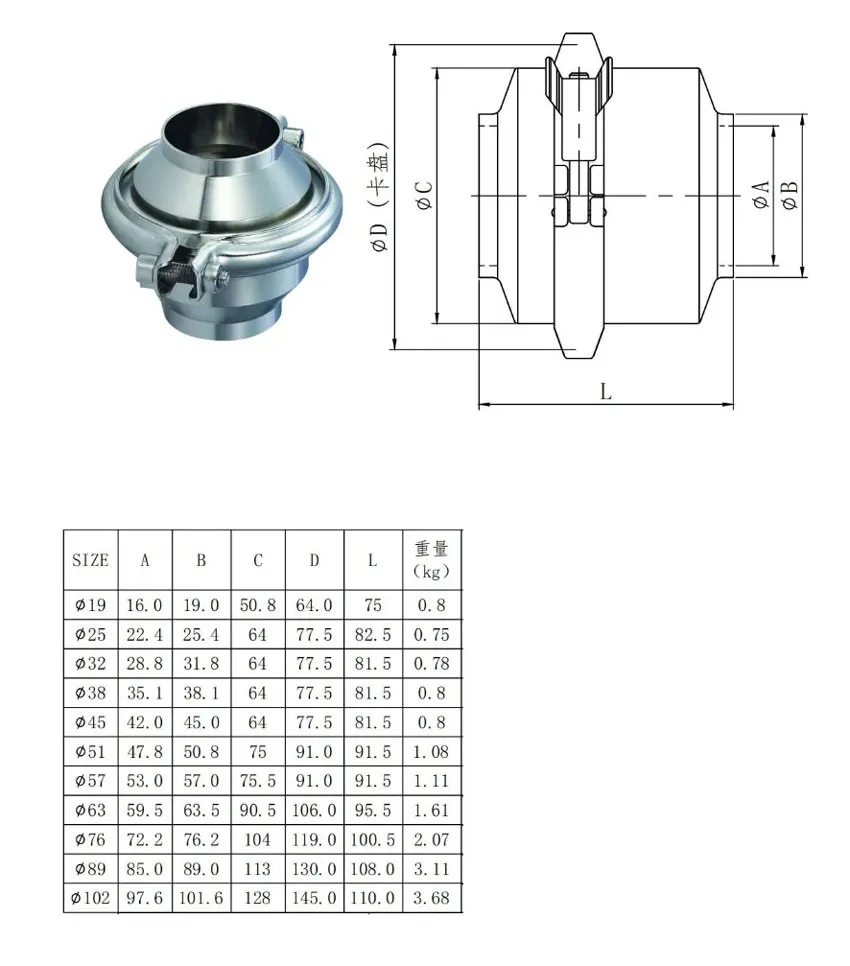

Rreference data
Size DN15-DN100, 1/2″-4″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature 14 ~ 248°F (-10 ~ 140°C) , Silicone EPDM
Max. pressure 145 psi (10 bar)
Opening pressure 1.5-4.5 psi (0.1-0.3 bar)
Seal EPDM, Silicone, FKM, VITON, NBR
Pipe Joint Systems DIN SMS 3A ISO
Surface treatment Ra 32µin (0.8µm-1.6µm) as default.
Connection type Clamp End, Thread End, Weld End
