Sanitary Spunding Valve

Sanitary Spunding Valve – 316L SS, CIP-ready for precise pressure control in beer, wine & bio-fermentation tanks. Hygienic design, easy to clean.
Size3/4″-1.5″.
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
TemperatureMax 150 ℃ (Silicone)
Max pressure40psi (3bar)
Get a Quote

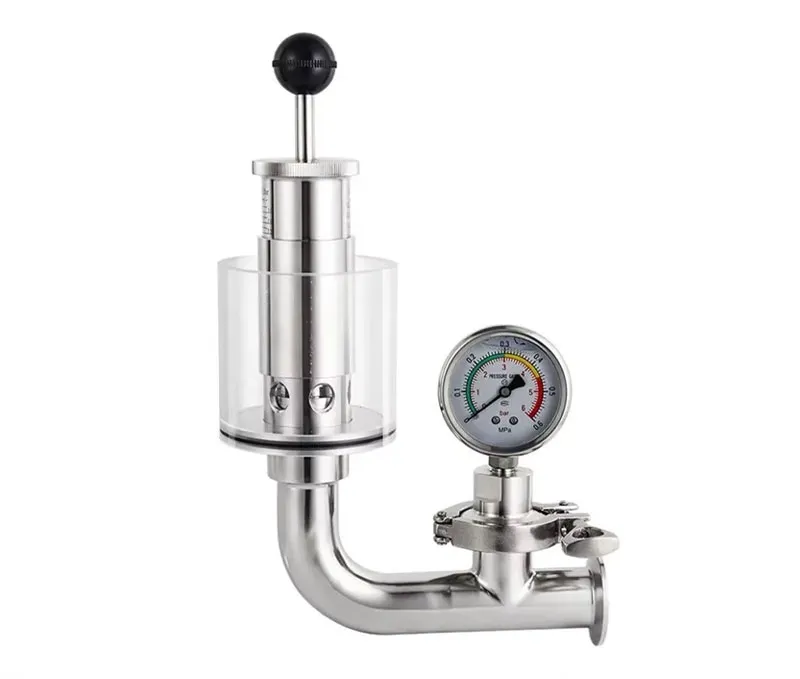

Sanitary Spunding Valve
Product Description

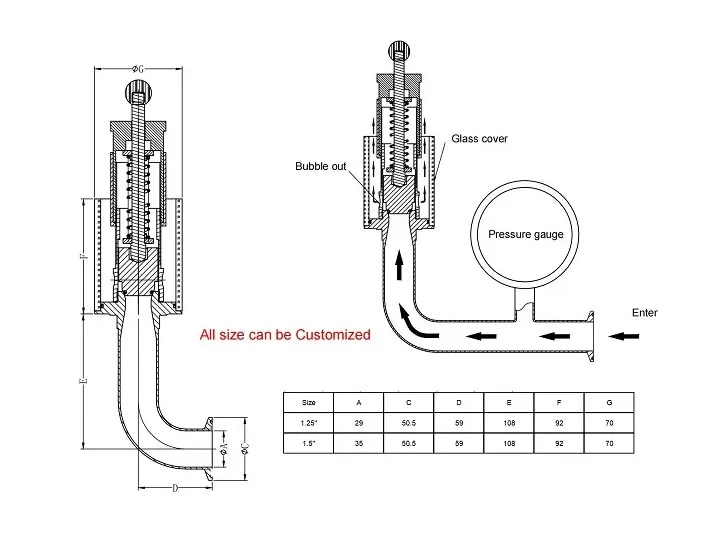

Spunding valve with spring return are continuously adjustable.Exactly adjustable to the desired opening pressure, the valves are closed and opened very sensitively with low differential pressure.

spunding valve are available both in open design(free blowing-off of CO ) and in closed design with pipe connection

Rreference data
Size 3/4″-1.5″.
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature Max 150 ℃ (Silicone)
Max pressure 40psi (3bar)
Seal EPDM, Silicone
Pipe Joint Systems Clamp part K50.5
Glass Cylinder Organic Glass
