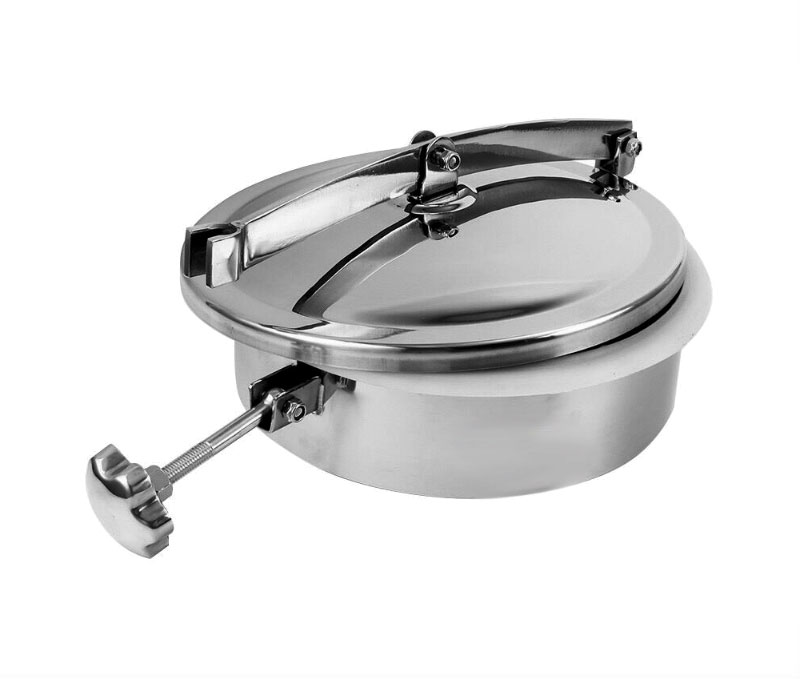

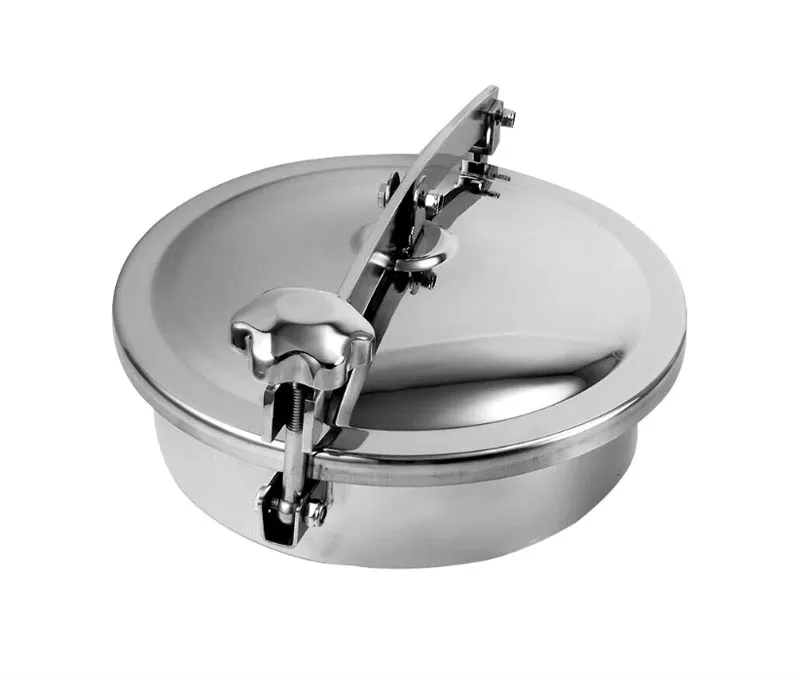

Sanitary Round Manways are made in stainless steel T304, T316L, it is one of mainly type of tank manhole cover. Sanitary round manway is mainly applied for the tanks and vessels of food, beverage, chemical etc. Wellgreen sanitary offers a full line tank manways to processing equipment, to meet you every needs of hygienic industries.
Plastic wheel or stainless steel wheel
Material: AISI304(1.4301)/316L(1.4404)
Internal surface Ra 0.8 μm-0.5μm
External surface polishing finish, matt finish or sand-blasting finish
Height: 80- 150mm
Application
Manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.
Materials
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, FRM
Manhole seat and gasket comply with FDA 21CFR177.2600

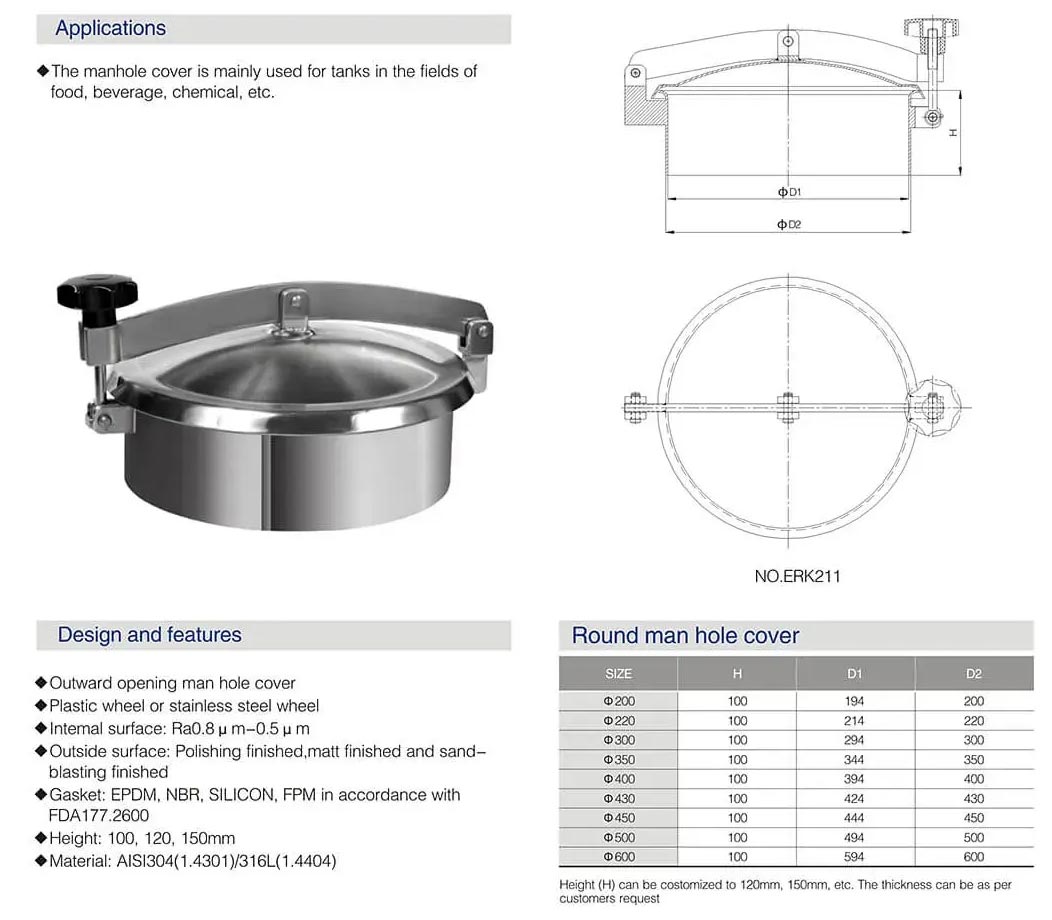

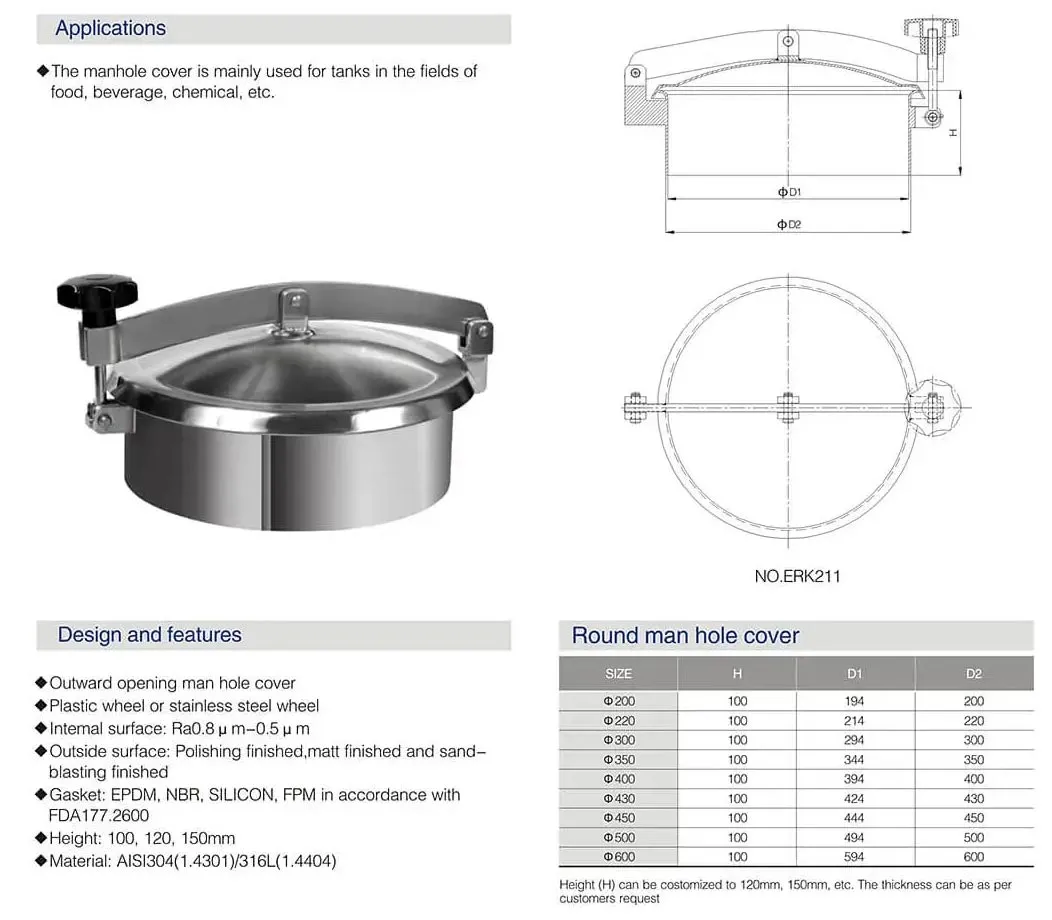

Standard Design
Available in size from 150mm to 800mm
Standard thickness: 3mm
Outward Opening
Self-sealing double lip seal to prevent fluids spraying out.
