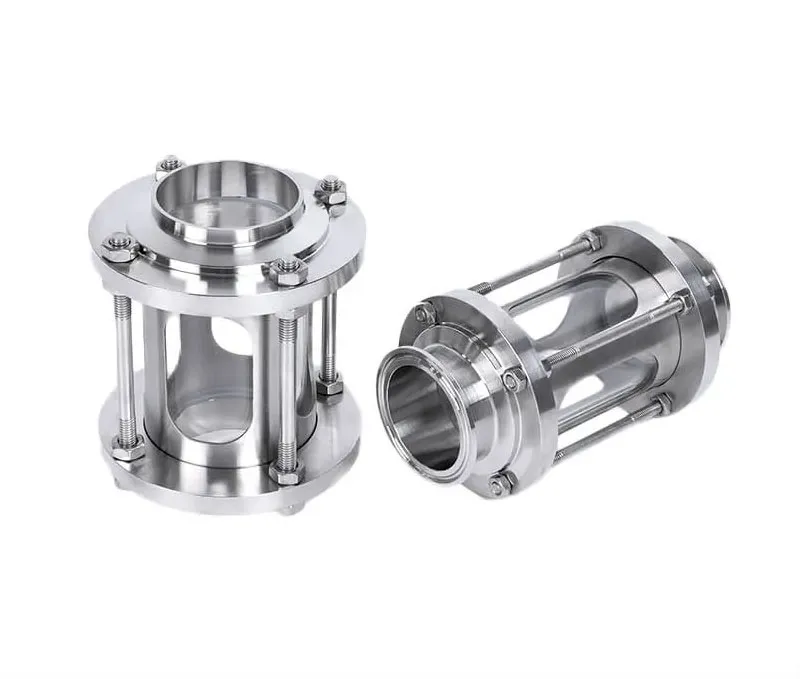

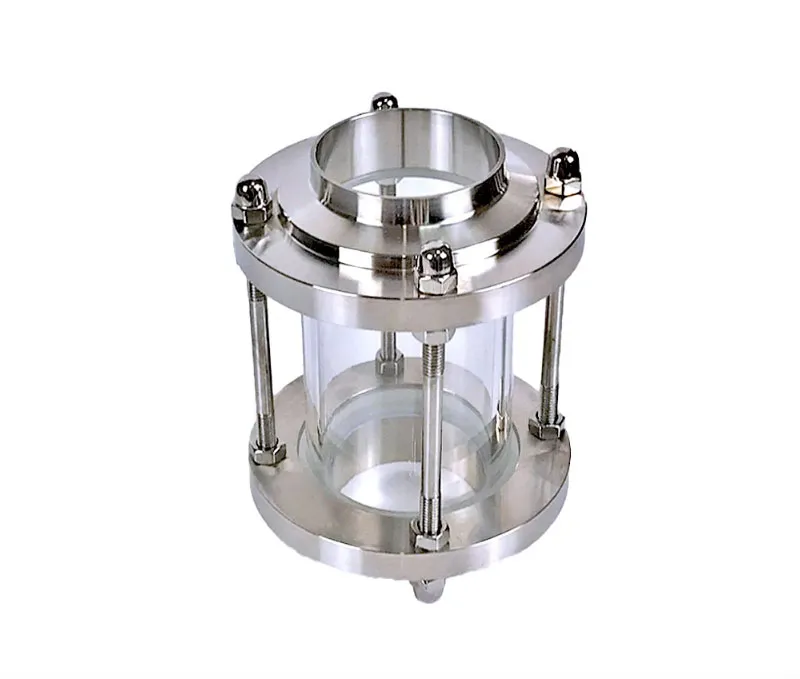

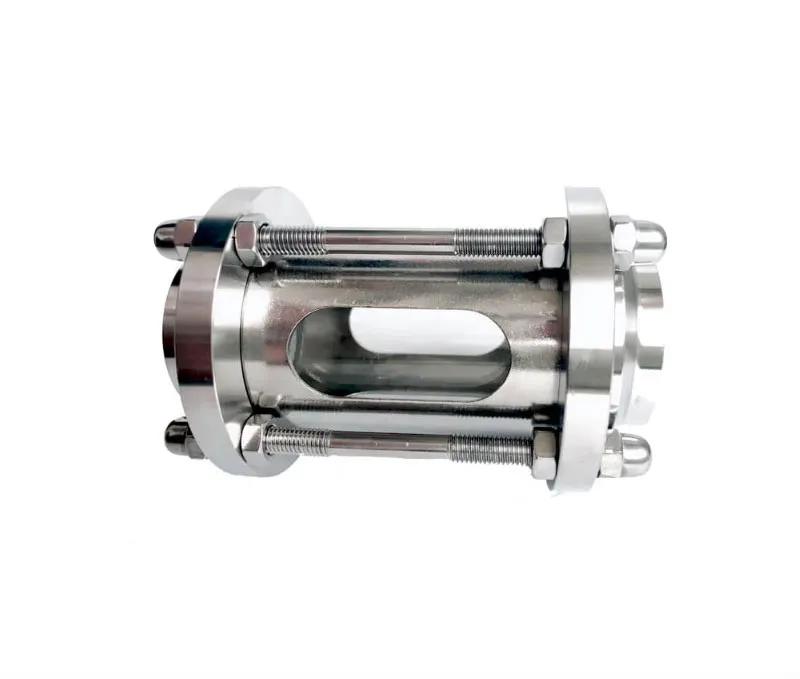

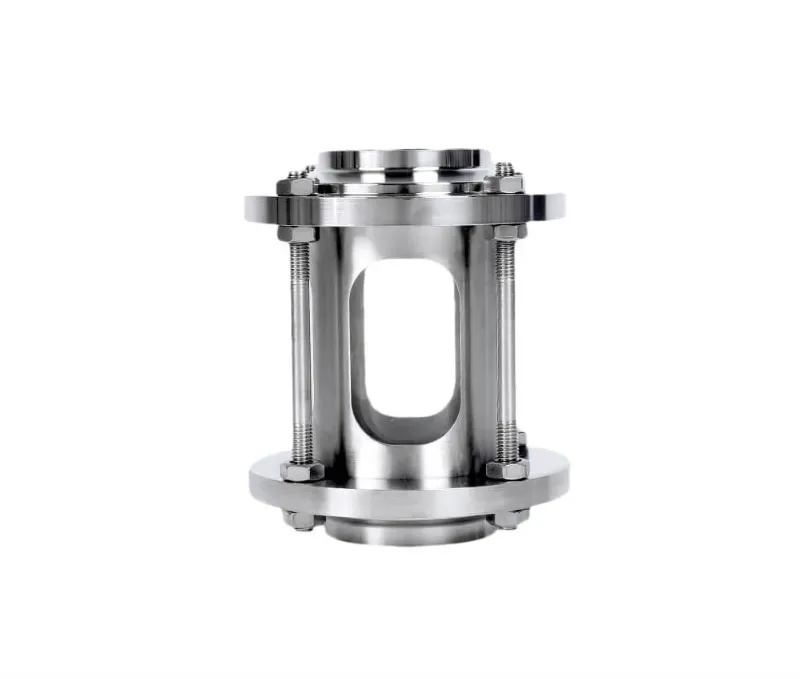

Sanitary Weld Sight Glass is made of sanitary stainless steel and borosilicate glass, withstands pressure up to 10 bar, and is equipped with FDA-approved sealing gaskets. It is used for visual inspection of materials in pipes or tanks in industries with stringent hygiene standards, such as food, beverage, and pharmaceutical.
| Material | Stainless Steel 304, 316L (1.4301/1.4404). |
| Connection type | Butt Weld, Tri-clamp, Thread end |
| Connection Size | Available in size from 1″-4″, DN25-DN100 or others upon requirement |
| Max Pressure | 10 bar (145PSI) |
| Working temperature | -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE) |
| Surface treatment | CNC machined Ra<0.8μm |
