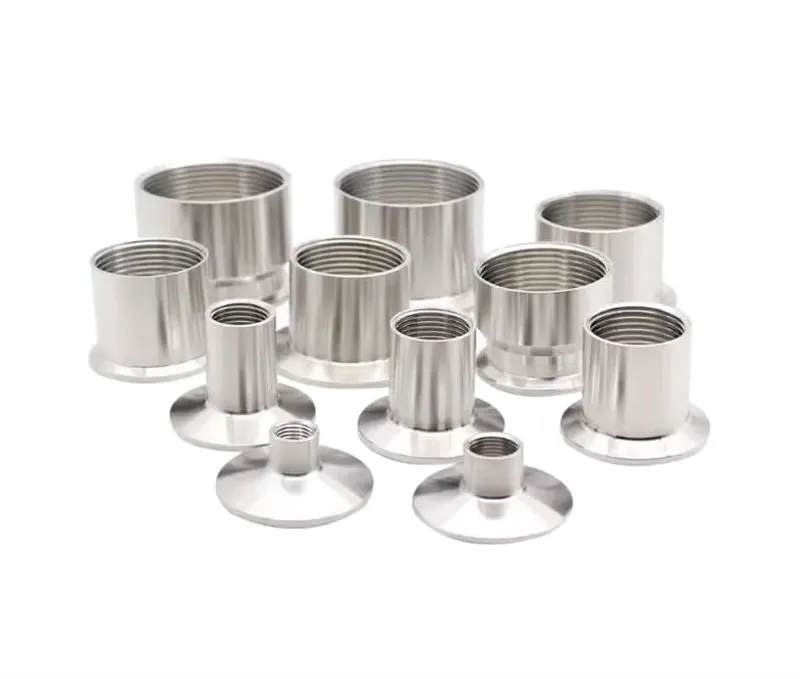

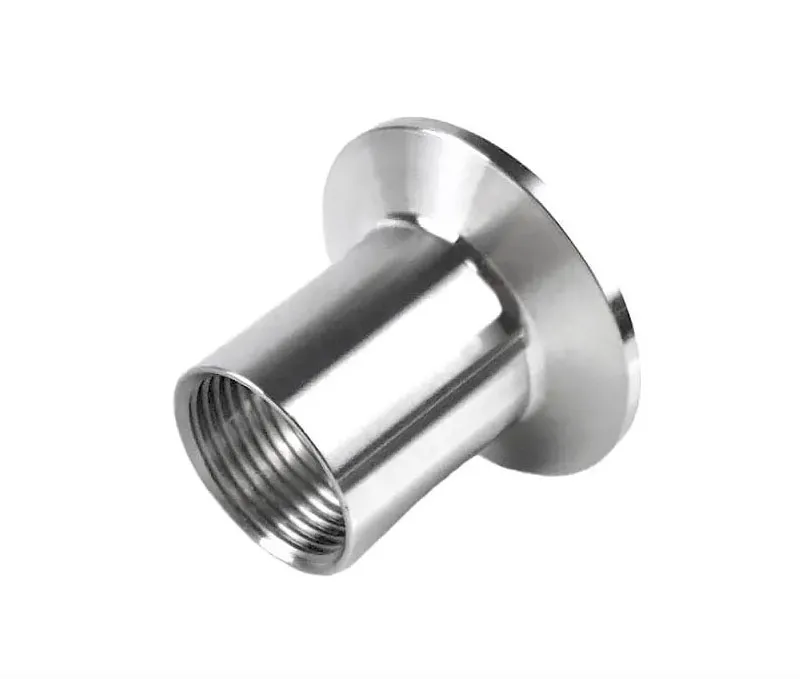

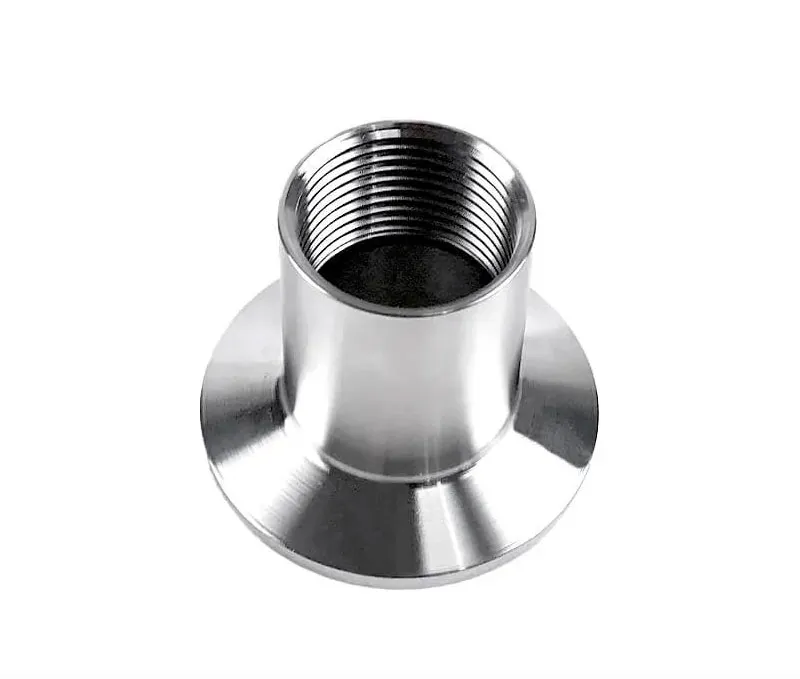

Female Thread Ferrule Adaptor

Aohoy hygenic Stainless Steel Sanitary 304 316l tri-clamp NPT BSP female thread type ferrule
MaterialStainless Steel 304, 316L
Connection TypeThread, Tri-clamp
Max Pressure10bar (145PSI)
Surface TreatmentCNC machined Ra<0.8μm
Thread standardBSP, BSPP, NPT, G Thread, etc
Product Description

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

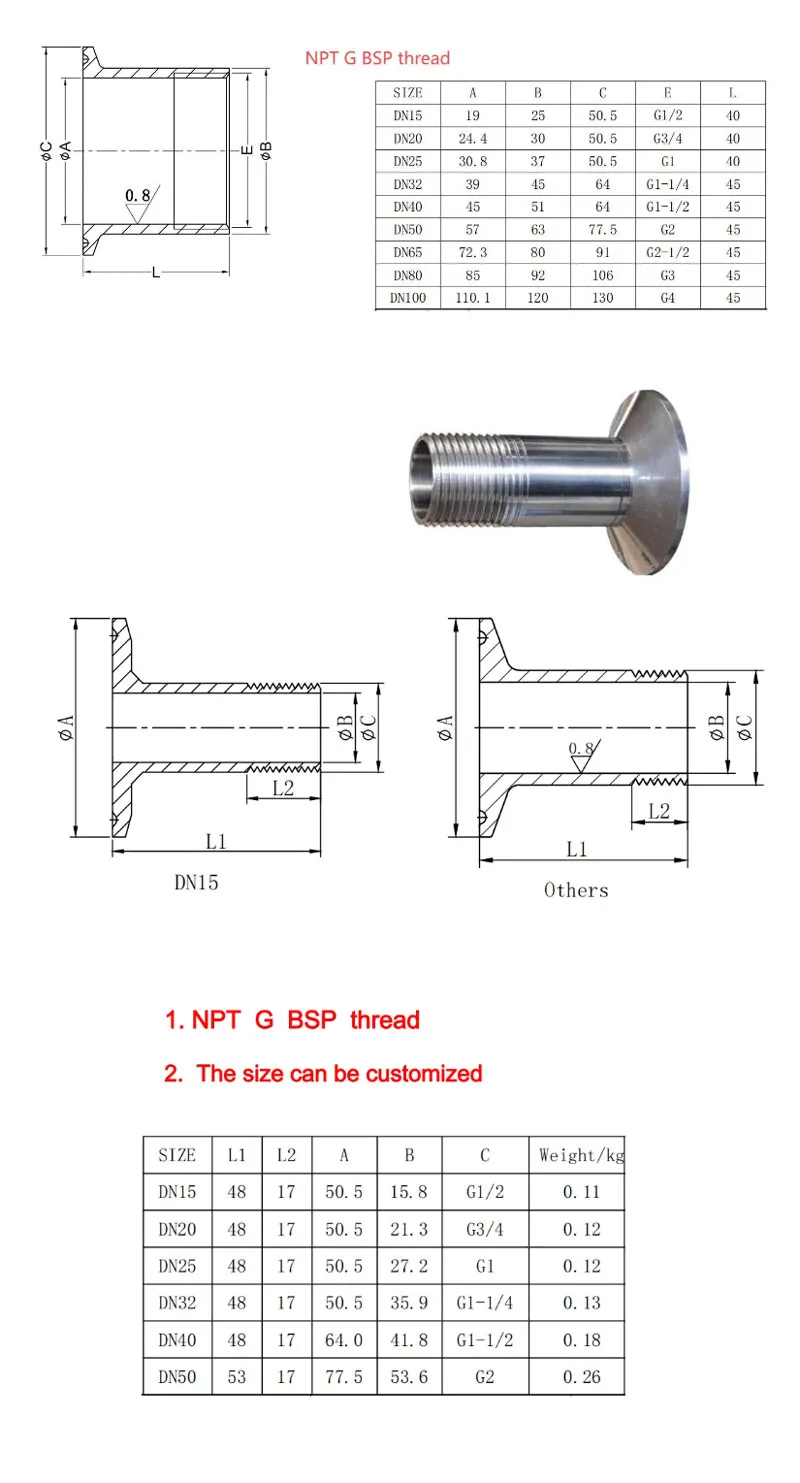

Rreference data
Material Stainless Steel 304, 316L
Connection type Thread, Tri-clamp
Connection Size 1/4″ to 4″
Max Pressure 10bar (145PSI)
Working temperature -20-180°C (Silicone), -20- 150°C (EPDM), -20~220°C (PTFE)
Surface treatment CNC machined Ra<0.8μm
Thread standard BSP, BSPP, NPT, G Thread, etc
