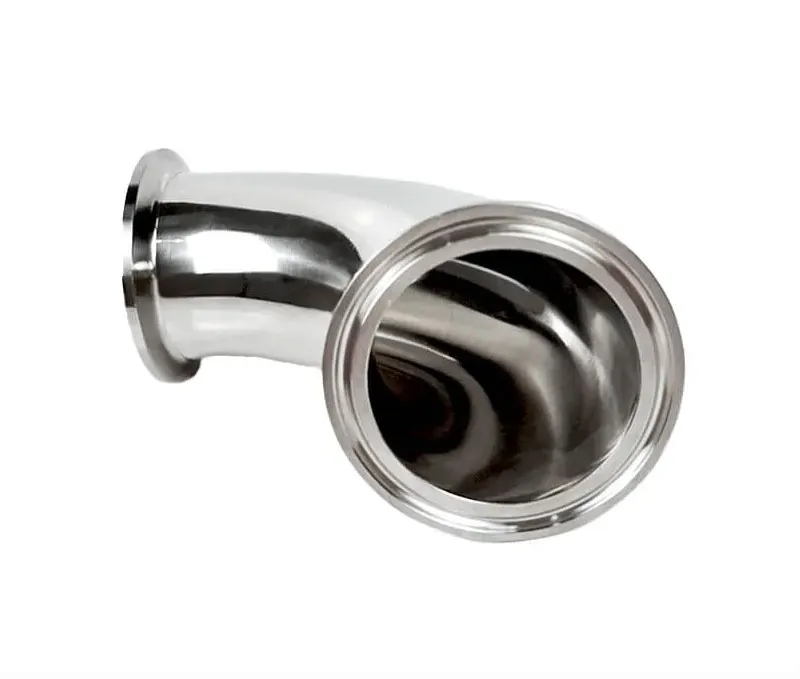

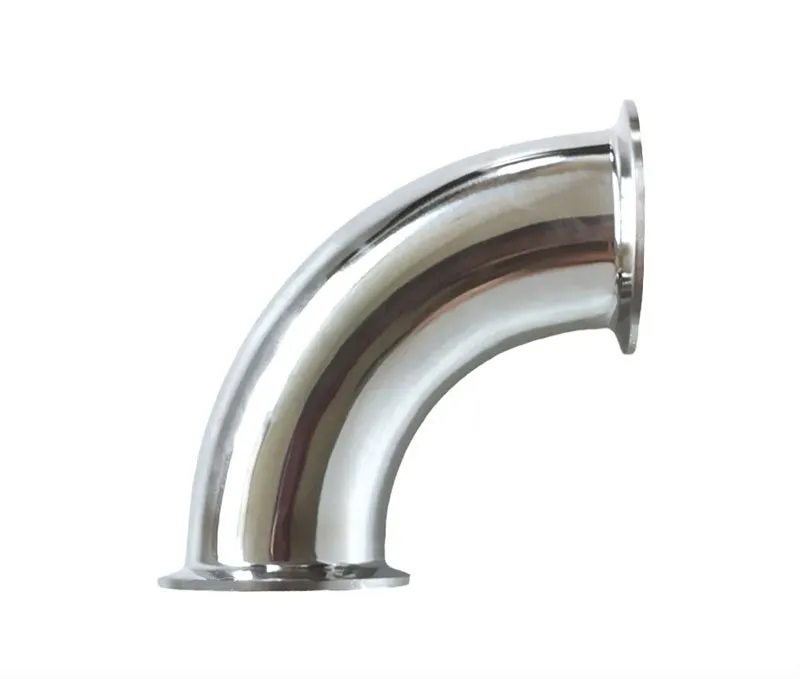

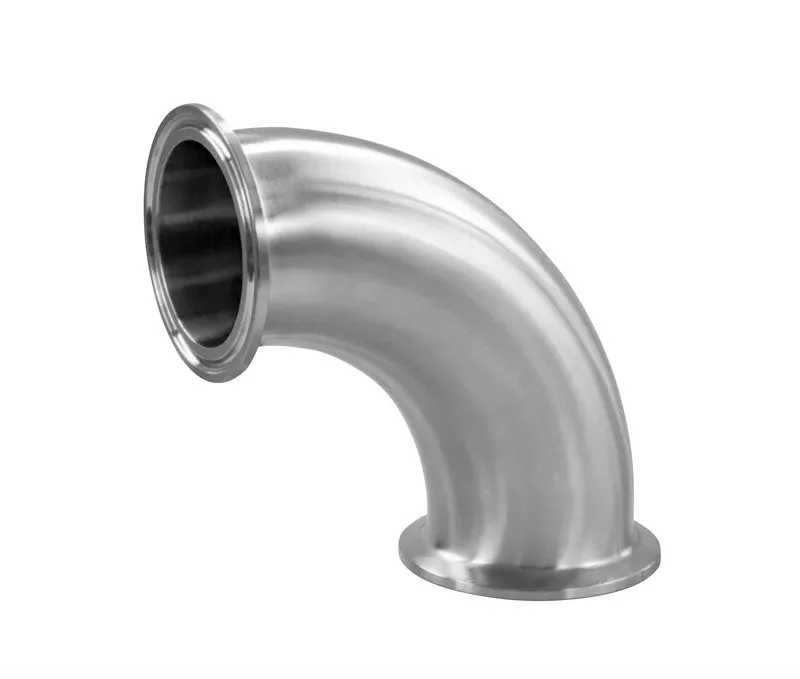

This Tri Clamp 90 Degree Elbow features Tri-Clamp ferrule ends for quick, secure, and tool-free assembly in sanitary process systems. Ideal for installations requiring frequent access and cleanability.
| Material | Stainless Steel 304, 316L |
| Connection type | Butt Weld, Tri-clamp, Union |
| Connection Size | 0.5″ to 12″ |
| Max Pressure | 10bar (145PSI) |
| Working temperature | -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE) |
| Surface treatment | Mirror and Matte polishing |
| Standard | DIN11850/DIN11851, SMS, ISO, 3A, ASME BPE |
