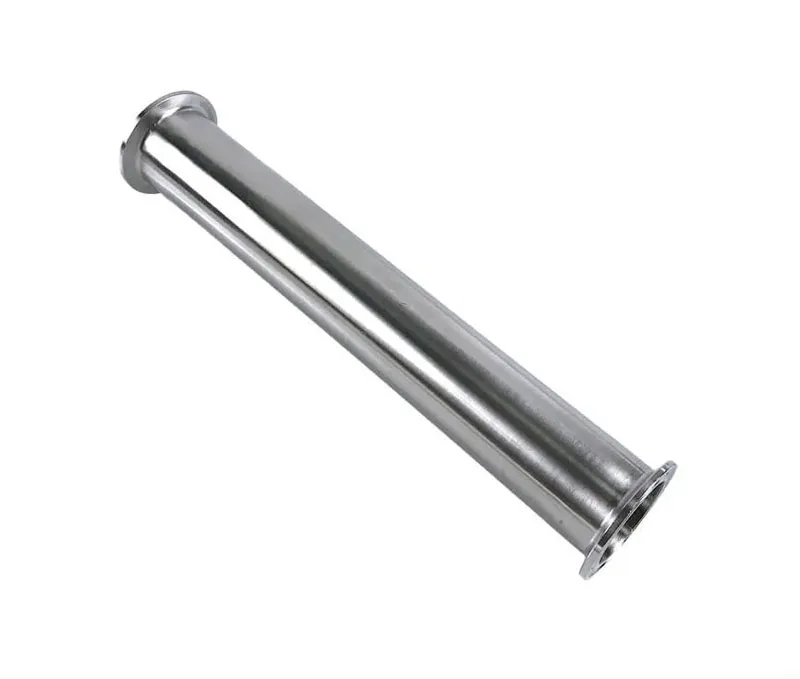

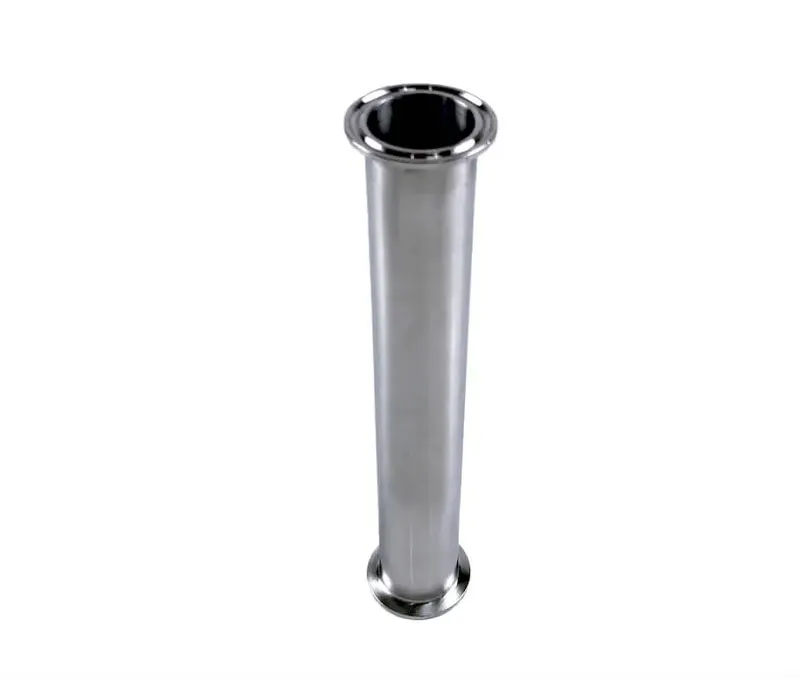

Tri Clamp Sanitary Jacketed Spool is a standard spool equipped with an enclosed shell. This design enables users to thermally regulate the inner tube and its contents without interrupting ongoing processes. Thermal fluid can circulate through the bottom and top ports. Additionally, users can utilize the jacket as an insulation tool by isolating it with valves and fully evacuating it.
Feature
Crafted from high-quality 304 stainless steel, the Jacketed Spool delivers exceptional durability and stability. It exhibits superior resistance to rust and corrosion, making it ideal for long-term, reliable use.
Its precision design enables water circulation through the base of an extractor or material column, allowing for efficient heating or cooling of solvent vapor. Tri-clamp fittings on both ends enhance user convenience during setup and operation.
The spool accommodates liquids across a broad working temperature range of -58°F to 392°F, ensuring versatility for diverse operational needs.
For streamlined organization and storage, it comes packaged in a labeled carton box, simplifying handling and inventory management.
| Material | Stainless Steel 304, 316L |
| Connection type | Tri-clamp |
| Size | 3/4″ to 10″ and Customized, Lenght 50mm-1000mm & Customized |
| Max Pressure | 10bar (145PSI) |
| Working temperature | -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE) |
| Surface treatment | Mirror and Matte polishing |
| Standard | DIN11850/DIN11851, SMS, ISO, 3A, ASME BPE |
