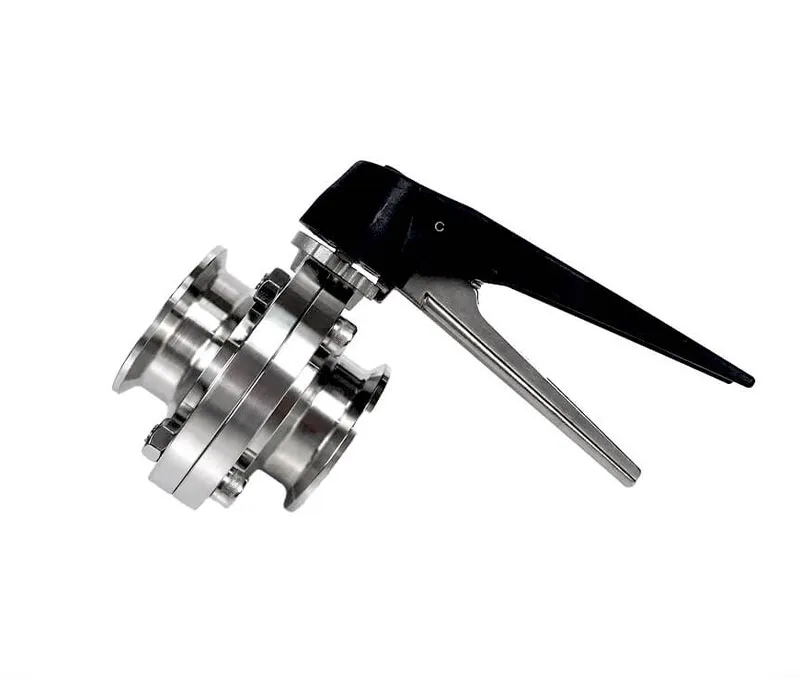

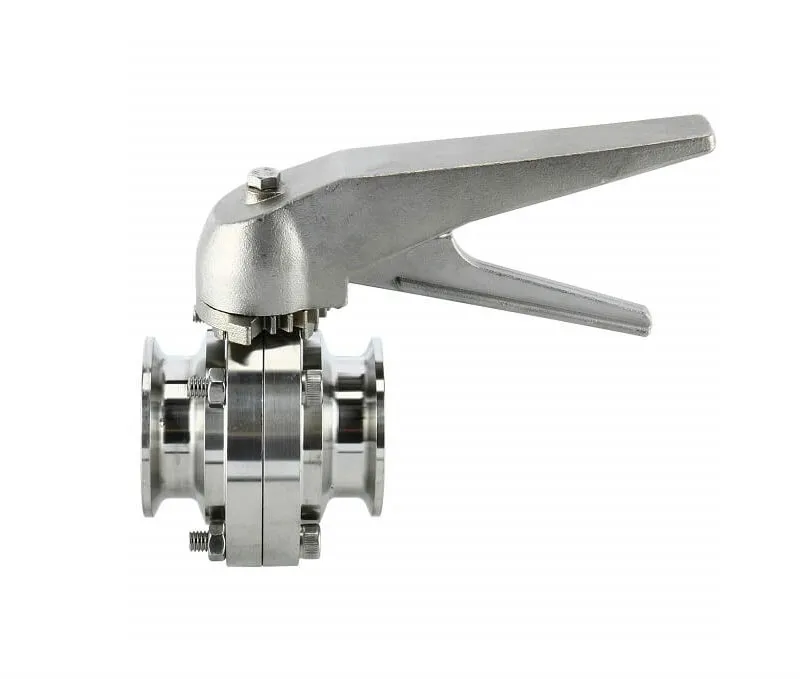

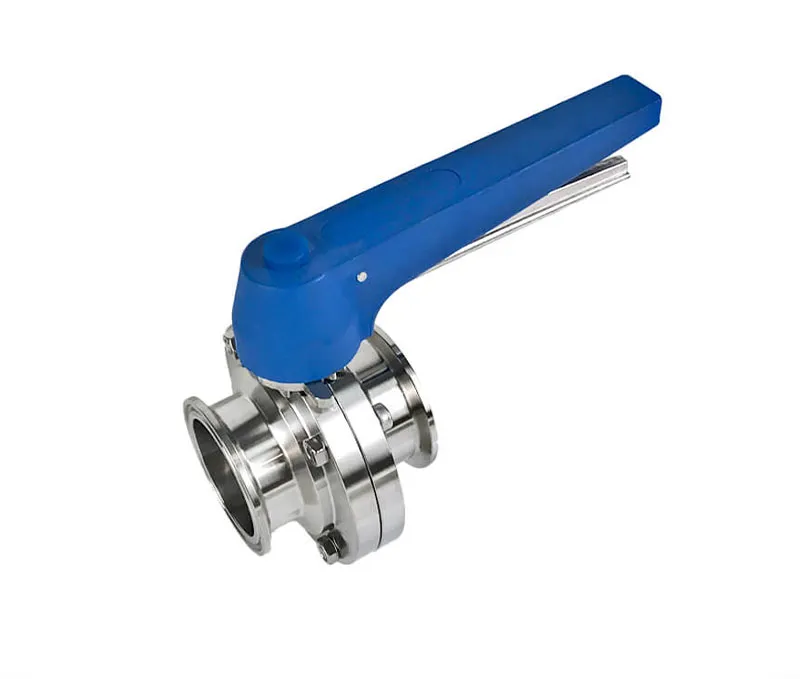

Trigger Handle Clamp Butterfly Valve is constructed with a 304 stainless steel body, providing sanitary-grade quality. It features a 13-position blue trigger handle and polished wetted surfaces finished to less than 32 Ra.
Trigger Handle Clamp Butterfly Valves can be remotely controlled by an actuator or manually operated by a handle and are designed to provide years of reliable service in sanitary stainless steel fluid handling systems., this valve is field-serviceable and ideal for applications requiring precise flow control.

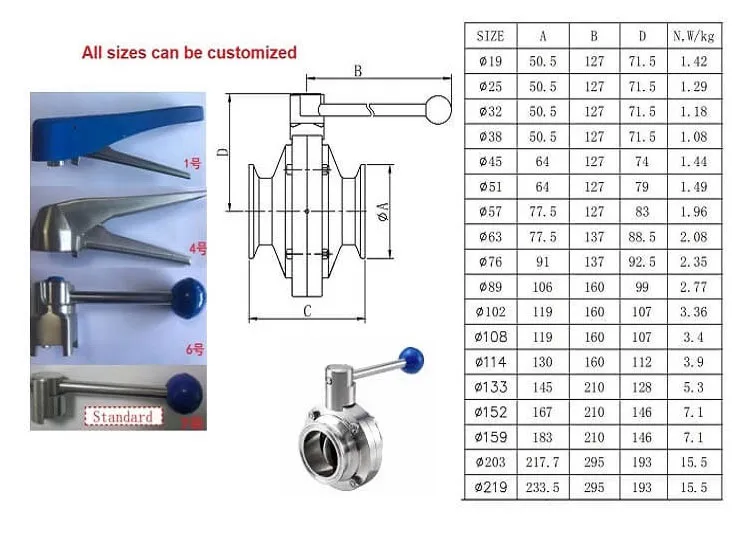

| Size | DN10-DN300, 1/2″-12″ |
| Body&Disc Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
| Temperature | -20℃ to +220 ℃ (It depends on the seal) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, FKM, TEFLON, PTFE, NBR |
| Pipe Joint Systems | DIN SMS RJT 3A ISO IDF |

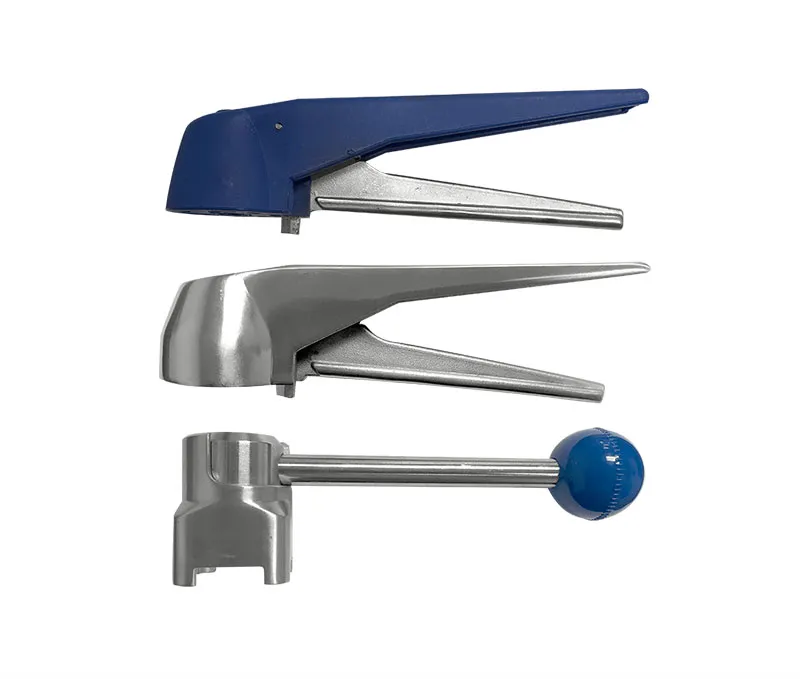

| Manual Operation | Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle, trigger handle |
| Pneumatic Operation | Compatible with Single-acting or Double-acting Pneumatic actuator |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Connection type | Clamp End, Thread End, Weld End |
