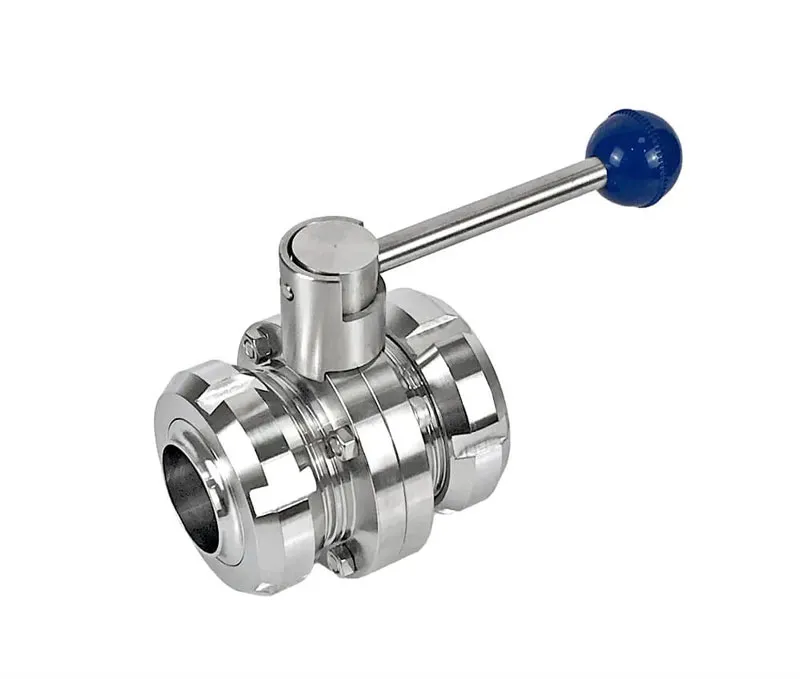

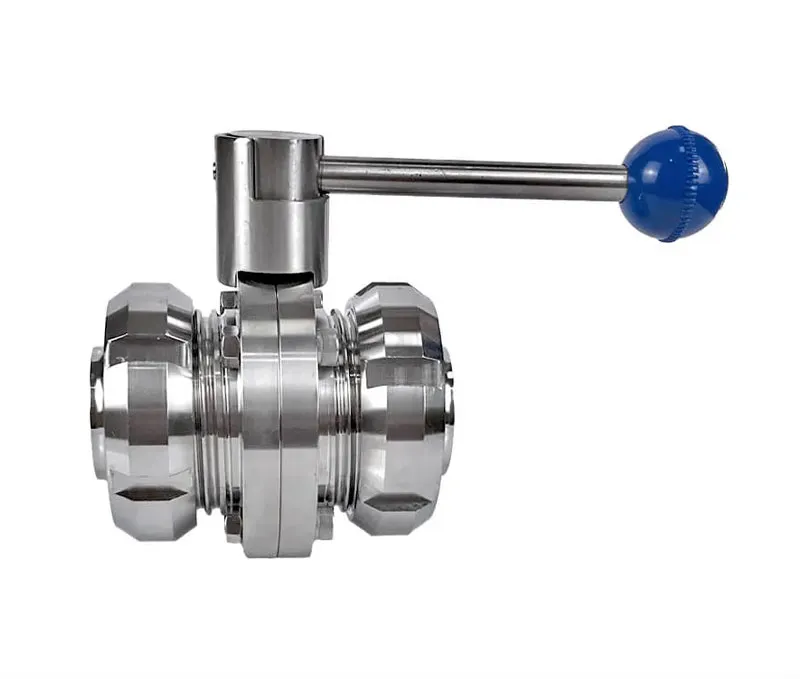

Union Type Stainless Steel Butterfly Valve

Aohoy stainless steel ss304 sanitary dairy sms din standard male thread union type manual butterfly valve
SizeDN10-DN300, 1/2″-12″
Body & Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature-20℃ to +220 ℃ (It depends on the seal)
Max Pressure145psi (10bar)
Connection TypeClamp End, Thread End, Weld End
Product Description

Aohoy stainless steel ss304 sanitary dairy sms din standard male thread union type manual butterfly valve

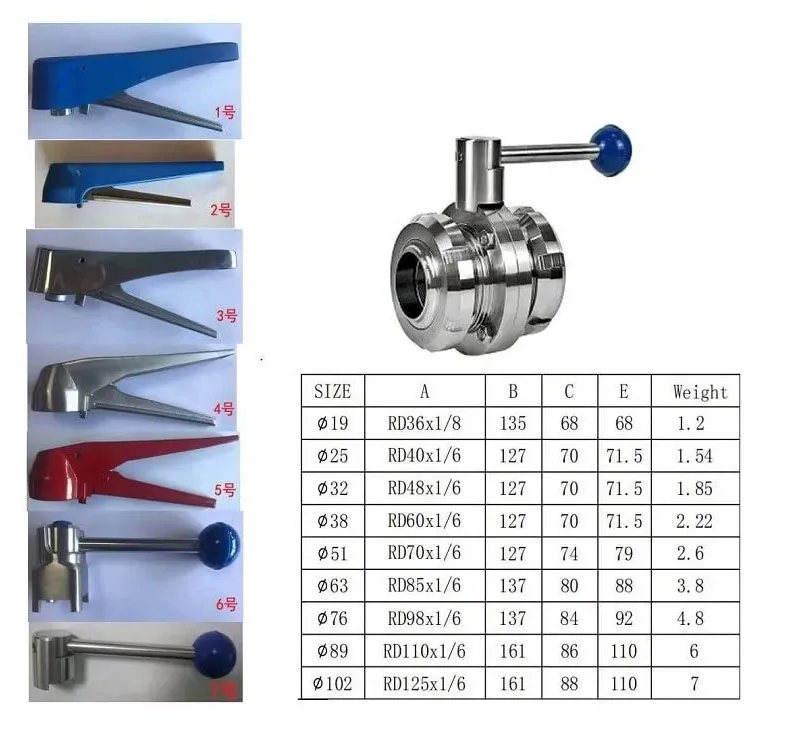

Rreference data
Size DN10-DN300, 1/2″-12″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature -20℃ to +220 ℃ (It depends on the seal)
Max pressure 145psi (10bar)
Seal EPDM, Silicone, FKM, TEFLON, PTFE, NBR
Pipe Joint Systems DIN SMS RJT 3A ISO IDF
Manual Operation Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle
Pneumatic Operation Compatible with Single-acting or Double-acting Pneumatic actuator
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type Clamp End, Thread End, Weld End
