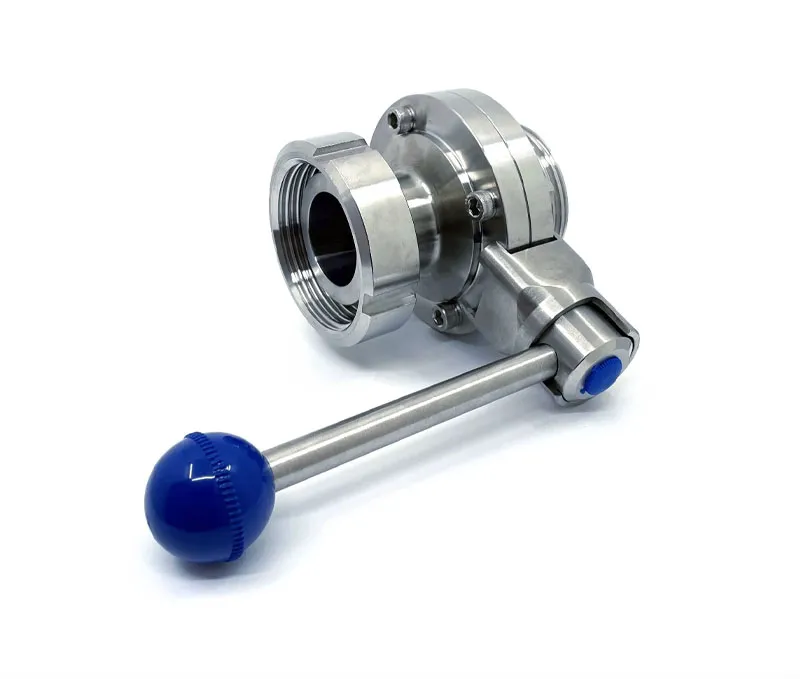

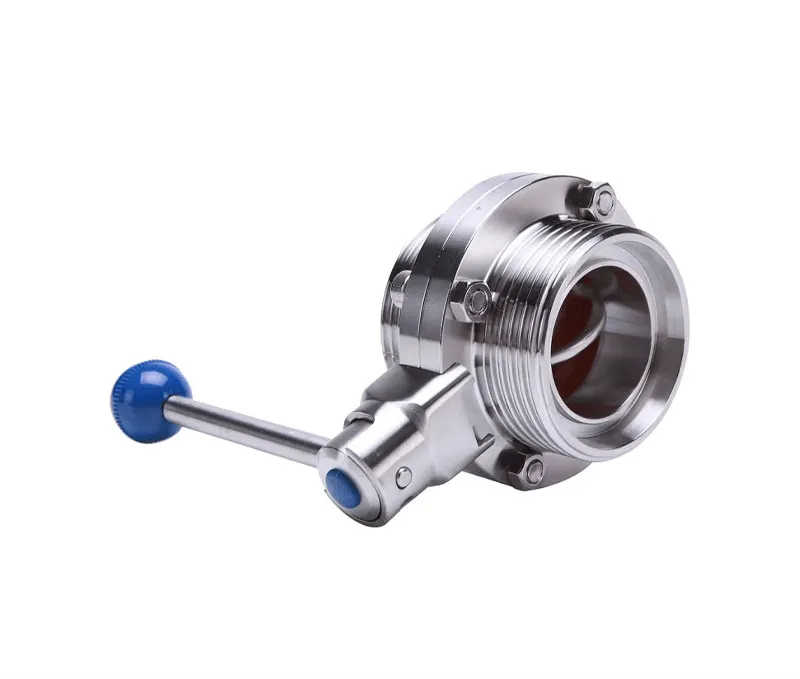

Sanitary Thread Butterfly Valve

Aohoy food grade 304 316 sanitary sms din type thread end connect butterfly valve
SizeDN10-DN300, 1/2″-12″
Body & Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature-20℃ to +220 ℃ (It depends on the seal)
Max Pressure145psi (10bar)
Connection TypeClamp End, Thread End, Weld End
Product Description

Sanitary Thread Butterfly Valve regulate or isolate the fluid by rotating a disc inside the valve body. It is designed for use in a wide range of applications and working pressures. The stem diameter provides especially low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. The FDA-compliant valves provide reliable performance and smooth operation by a manual, pneumatic actuator or automatic by the positioner.

Rreference data
Size DN10-DN300, 1/2″-12″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature -20℃ to +220 ℃ (It depends on the seal)
Max pressure 145psi (10bar)
Seal EPDM, Silicone, FKM, TEFLON, PTFE, NBR
Pipe Joint Systems DIN SMS RJT 3A ISO IDF

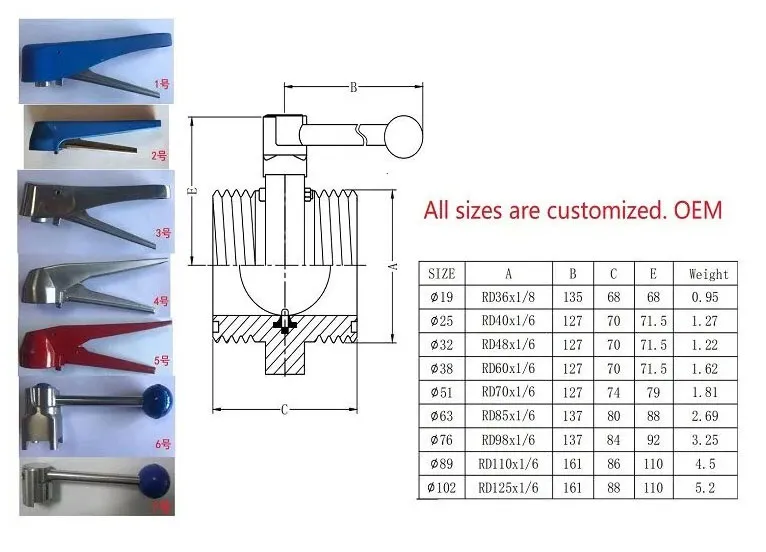

Manual Operation Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle
Pneumatic Operation Compatible with Single-acting or Double-acting Pneumatic actuator
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type Clamp End, Thread End, Weld End
