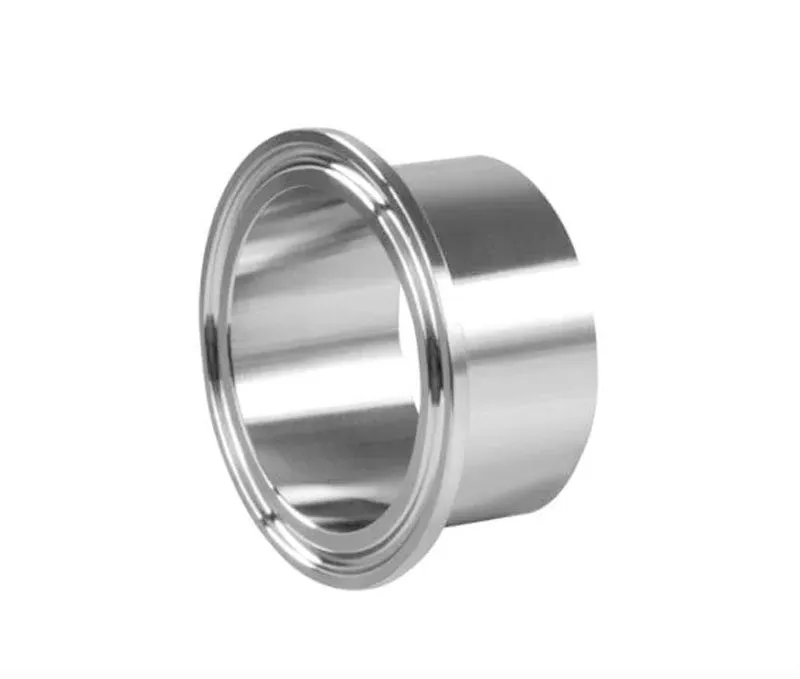

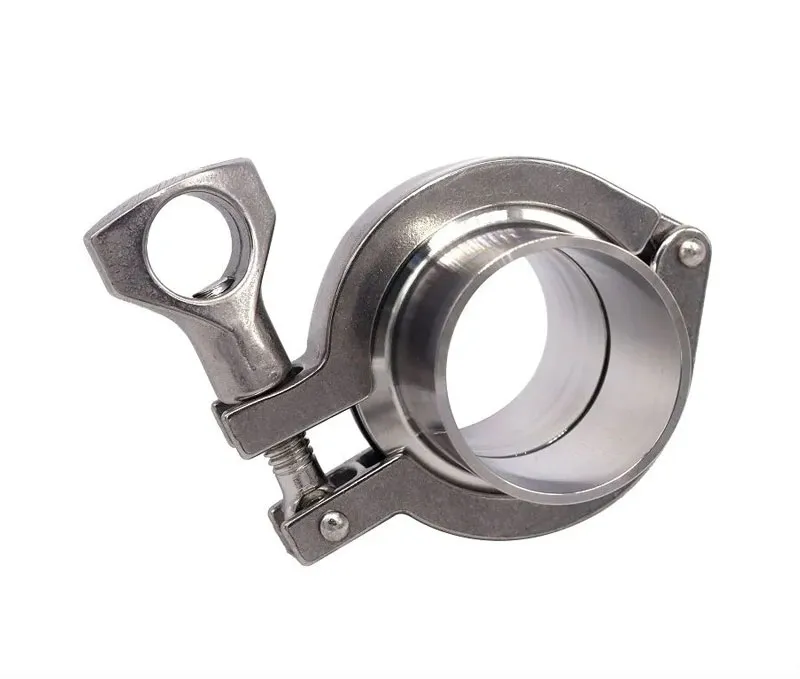

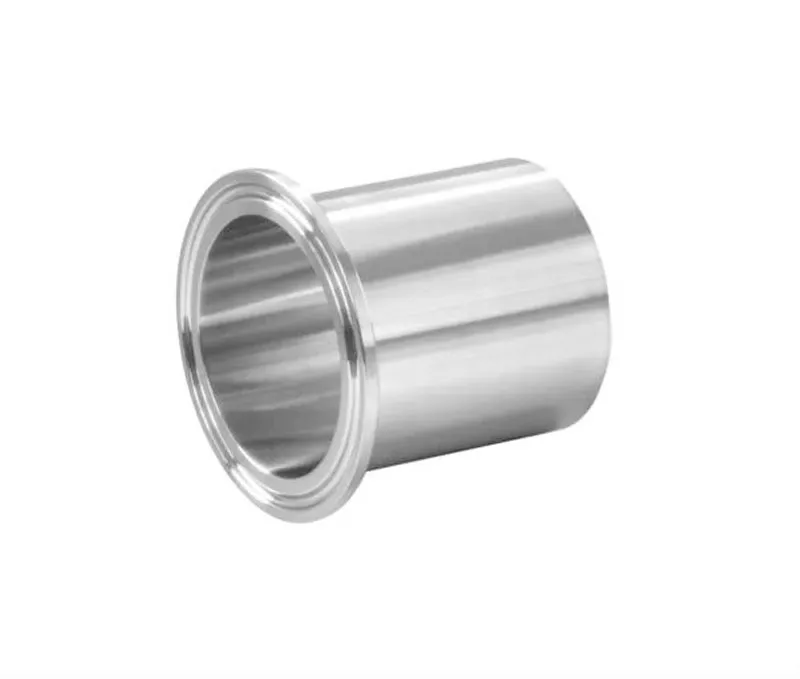

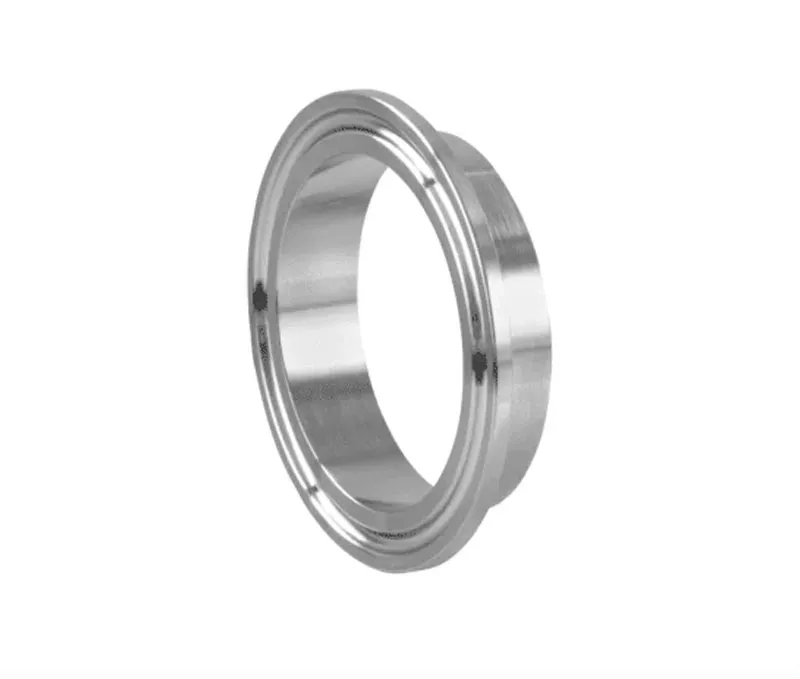

Tri Clamp (Tri Clover) Unions comprise two tri-clamp ferrules, which are compressed together using our hygienic clamps and gaskets to create a tight, smooth joint. All tri-clamp ferrules are forged, with a standard OD/ID finish of <0.8Ra. Forged construction delivers enhanced strength, superior weldability, and better surface finish.

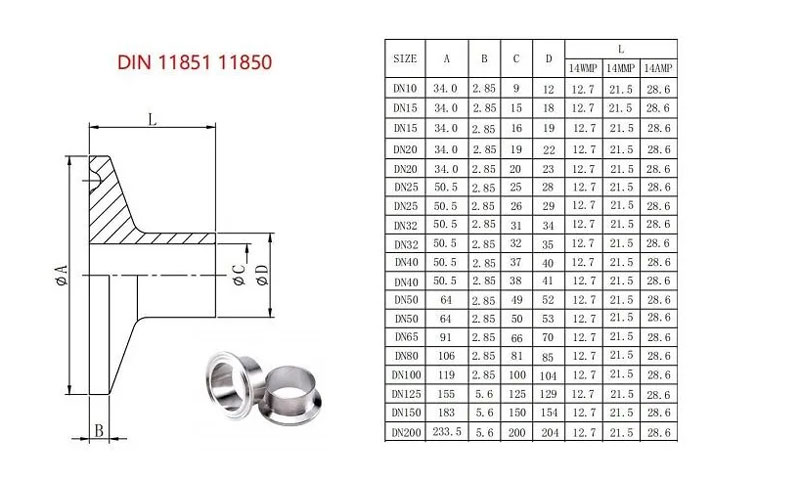

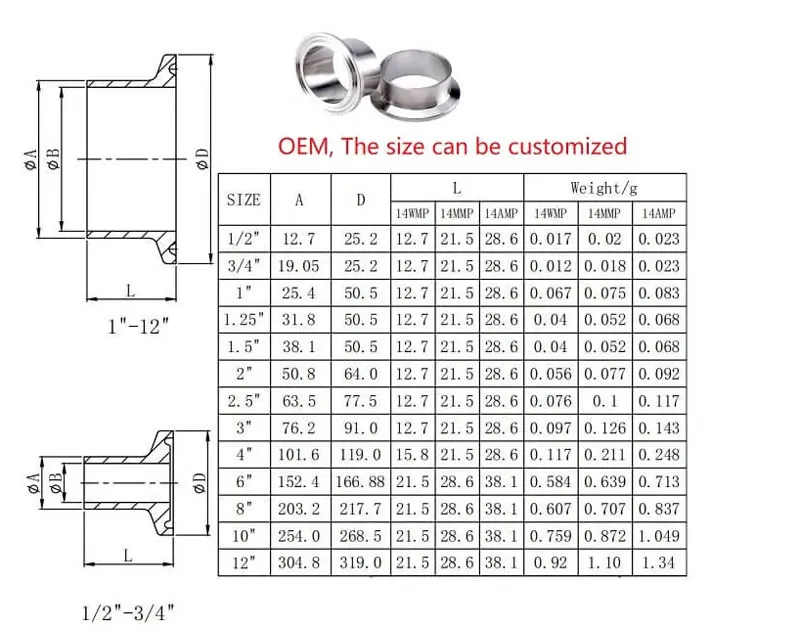

Tri clamps and tri-clover ferrules are available in lengths of 12.7mm, 21.5mm, 28.6mm, 38.1mm, and 50.8mm, compatible with OD tubes, Sch5, Sch10, Sch40 pipes, as well as DIN 11851, ISO, and metric tubes.
| Material | Stainless Steel 304, 316L |
| Connection type | Butt Weld, Tri-clamp |
| Connection Size | 0.5″ to 12″ |
| Max Pressure | 10bar (145PSI) |
| Working temperature | Max 180°C (Silicone), Max 150°C (EPDM), Max 220°C (PTFE) |
| Surface treatment | CNC machined Ra<0.8μm |
| Length standard | 12.7m, 21.5mm, 28.6mm. Others |
