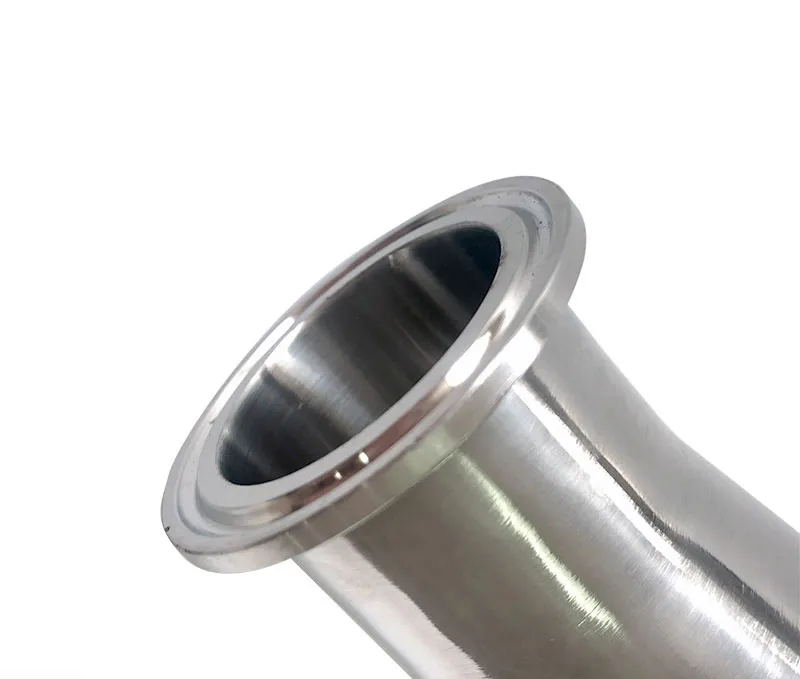

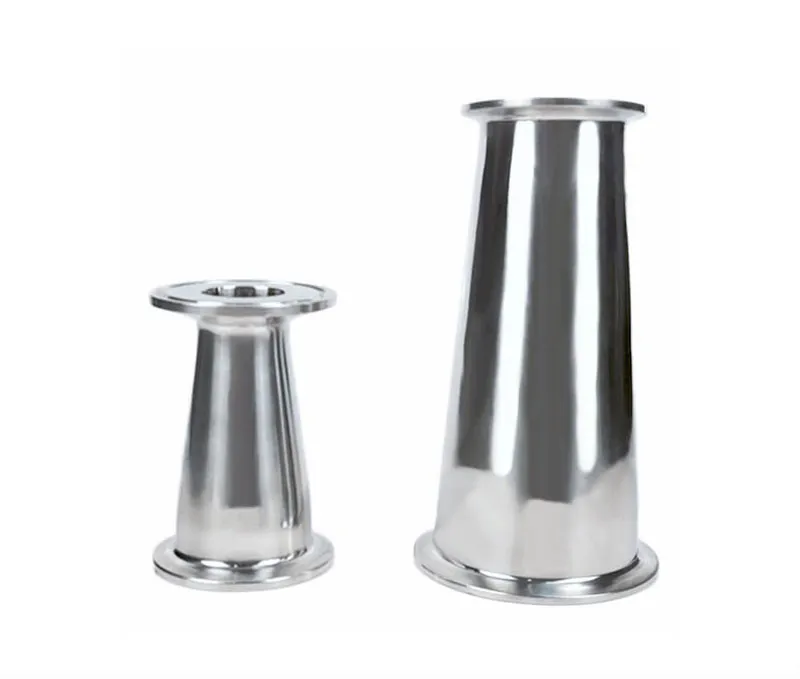

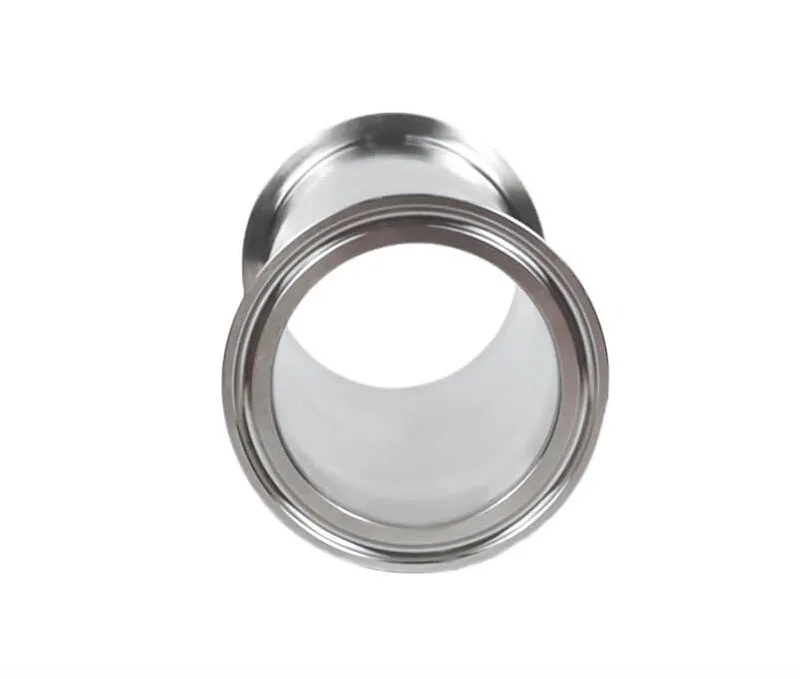

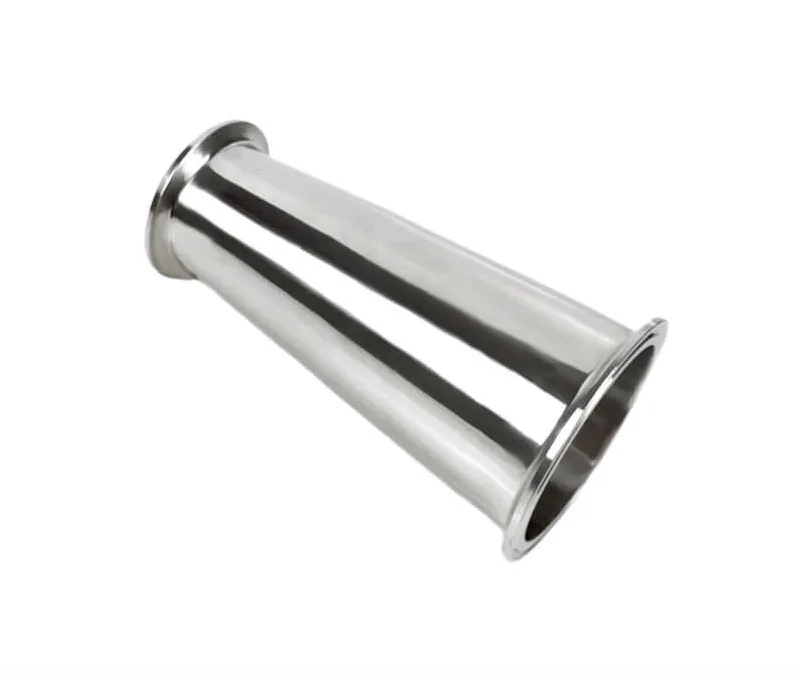

This hygienic Tri Clamp Concentric Reducer is designed for reliable, hygienic transitions between different pipe diameters in critical processing environments.Ideal for the food, beverage, and pharmaceutical industries, each reducer is clearly marked with a heat treatment batch number for complete traceability and quality assurance.
| Material | Stainless Steel 304, 316L |
| Connection Type | Tri-clamp |
| Connection Size | 0.5″ to 6″ and customized |
| Max Pressure | 10bar (145PSI) |
| Working Temperature | -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE) |
| Surface Treatment | Mirror and Matte polishing |
| Standard | DIN11850/DIN11851, SMS, ISO, 3A, ASME BPE |
