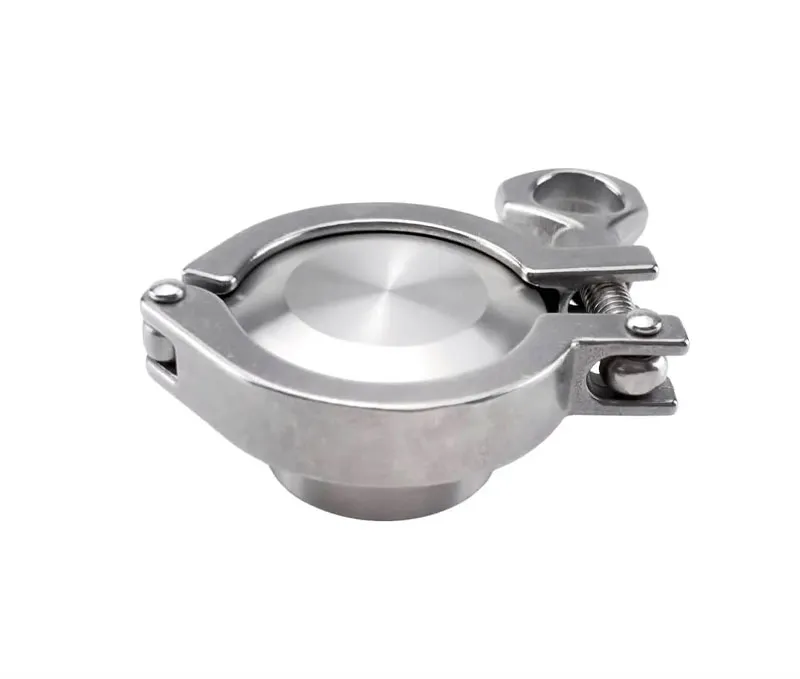

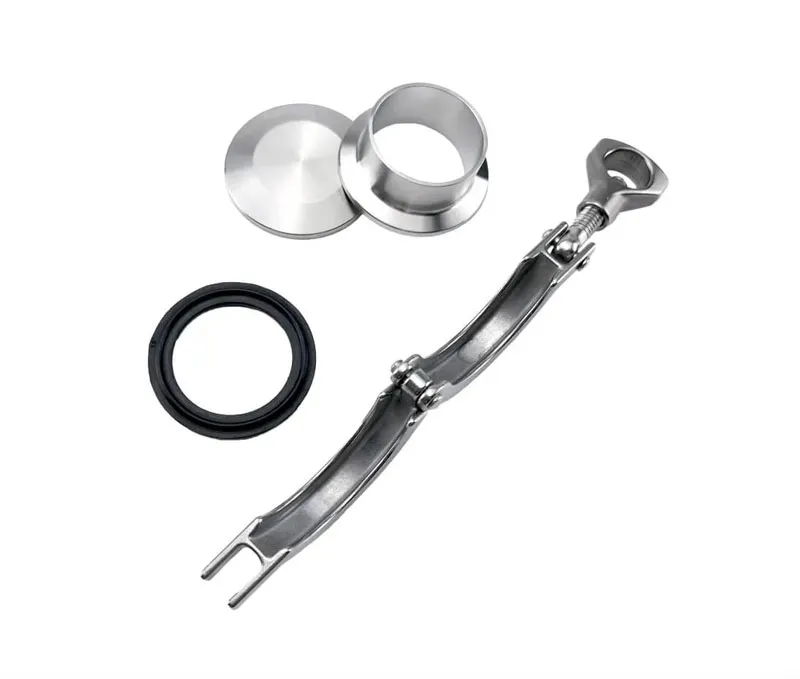

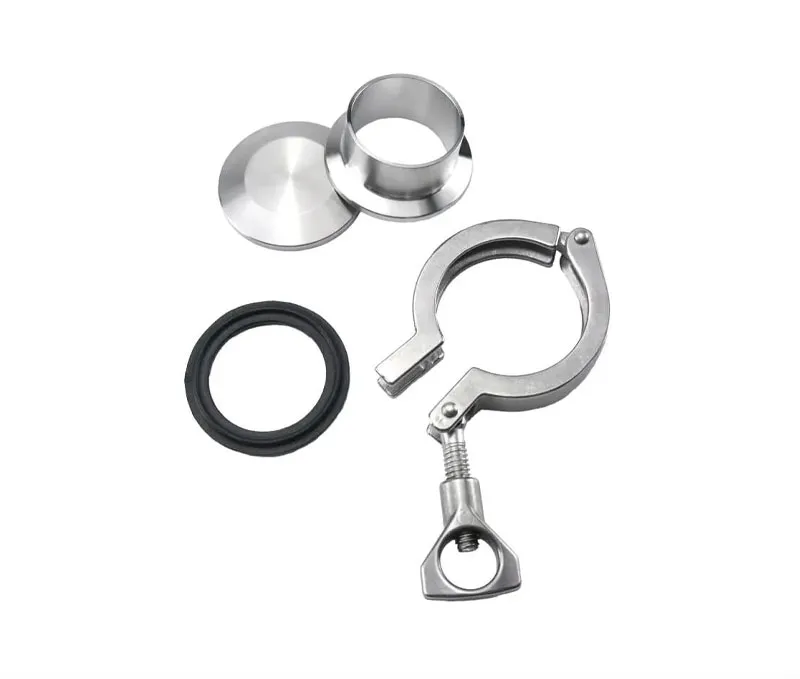

Tri-Clamp End Cap Ferrule Set uses sanitary clamp ends. The integral pipe clamp is usually made of stainless steel and is available in a variety of sizes. It is widely used in piping systems in the food, dairy, beverage, cosmetic, pharmaceutical and fine chemical industries.
| Material | Stainless Steel 304, 316L |
| Connection Type | Tri-clamp |
| Connection Size | 0.5″ to 12″ |
| Max Pressure | 10bar (145PSI) |
| Working Temperature | -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE) |
| Surface Treatment | CNC machined Ra<0.8μm |
| Standard | ISO, SMS, 3A, DIN |
| Thickness | 5mm-11mm |
