With the rapid development of industrial automation, petrochemicals, municipal water supply, and other fields, the accurate selection of fluid control equipment directly impacts system efficiency and safety. Among all valve types, ball valves and gate valves, as the two most widely used shut-off valves, are often compared by engineers.
However, there are significant differences between the two in terms of operating principles, structural design, and applicable scenarios. Properly distinguishing between the two is crucial to ensuring stable equipment operation. Recently, industry technical experts provided a detailed explanation of the core differences between the two.
The core distinction between the two valves lies in their fundamentally different opening and closing methods, which directly determine their operational characteristics and response speeds.
Ball Valve: It uses a "ball" as the core closure member. The valve stem drives the ball to rotate 90 degrees around its axis to achieve opening or closing. The ball has a circular flow bore at its center: when the bore is fully aligned with the pipeline diameter, fluid flows smoothly (fully open state); when the ball rotates 90 degrees, the bore is perpendicular to the pipeline diameter, and the side wall of the ball blocks the fluid (fully closed state). Its opening and closing process is essentially "rotational shut-off," with an extremely short operation stroke—usually only 1-2 turns of the valve stem are required to complete full closure or opening.
Gate Valve: It employs a "gate disc" as the core closure member. The valve stem drives the gate disc to move up and down along the pipeline axis to realize opening or closing. When the gate disc is fully lifted, there is no obstruction inside the pipeline, allowing maximum fluid flow (fully open state); when the gate disc is lowered to the lowest point, it fits tightly against the valve seat, blocking fluid flow (fully closed state). Its opening and closing process is essentially "linear lifting," with a long operation stroke—multiple turns of the valve stem are needed depending on the valve diameter (e.g., a DN200 gate valve may require 20-30 turns) to move the gate disc into place completely.

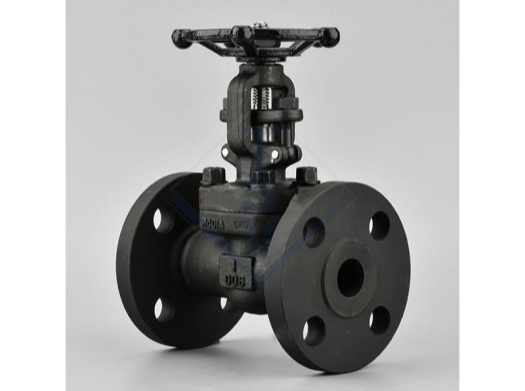

gate valves
Differences in structural design further lead to variations between the two valves in operational convenience, sealing performance, and flow control capability.
Ball valves have a relatively simple structure, mainly consisting of a valve body, ball, valve seat, and valve stem. They have fewer components and lower assembly difficulty. Since only a 90-degree rotation is needed for opening and closing, manual operation does not require frequent turning of the valve stem. Automation modification (e.g., adding pneumatic or electric actuators) is also simpler, with a fast response speed (usually completing the action within a few seconds).
Gate valves have a more complex structure. In addition to the valve body, gate disc, and valve stem, they also require a gate disc guiding mechanism and packing seal structure. Large-diameter gate valves may even be designed with double gate discs to enhance sealing. As the gate disc needs to lift and lower throughout the process, manual operation requires continuous rotation of the valve stem (e.g., a DN200 gate valve may need 20-30 turns). After automation modification, the action speed is slow, making them more suitable for scenarios that do not require frequent opening and closing.
Ball valves adopt "spherical sealing." The ball fits tightly against the valve seat (mostly made of elastic materials such as PTFE or rubber), and the sealing surface has a small area exposed to fluid erosion. They are particularly suitable for media containing particles, high-viscosity media, or corrosive media (e.g., slurry, chemical solvents). Moreover, they exhibit excellent sealing performance after closing, with minimal risk of leakage.
Gate valves use "flat-face sealing." The sealing surfaces of the gate disc and valve seat are in flat contact. After long-term use, the sealing surface is prone to wear due to impurities in the fluid, leading to leakage. Additionally, closing a gate valve requires significant pressure to make the gate disc fit the valve seat. If the medium contains particles, they can easily get stuck between the sealing surfaces, further damaging the sealing effect. Therefore, gate valves are more suitable for transporting clean, impurity-free fluids (e.g., clean water, steam).
The flow bore of a ball valve is a fixed circle, resulting in abrupt changes in flow rate during the opening and closing process. Flow rate only fluctuates slightly when "nearing full opening" or "nearing full closing." Thus, ball valves are not suitable as flow control valves and can only be used for on-off shut-off scenarios.
During the lifting process of the gate disc in a gate valve, the gap between the gate disc and the pipeline changes gradually, and the flow rate can be adjusted slowly according to the position of the gate disc. Although their control accuracy is lower than that of globe valves or control valves, gate valves can achieve rough flow control and are suitable for working conditions that require moderate flow adjustment (e.g., pressure fine-tuning in municipal pipe networks).
Industry experts emphasize that there is no "superiority or inferiority" between the two types of valves; the choice only needs to be adapted to specific working conditions. The following is a comparison of typical application scenarios:
| Scenario Type | Preferred Valve | Core Reason |
|---|---|---|
| Petrochemical and natural gas transportation | Ball Valve | Frequent opening and closing (e.g., batch production) is required; the medium may contain impurities or be corrosive. Ball valves offer fast opening/closing and strong sealing. |
| Municipal water supply and heating pipelines | Gate Valve | They remain in the fully open state for a long time, occasional flow adjustment is needed, and the medium is clean fluid. Gate valves have low flow resistance and convenient adjustment. |
| High-viscosity media (e.g., asphalt, syrup) | Ball Valve | Gate discs are prone to sticking to high-viscosity media, causing jamming during opening and closing; the rotational structure of ball valves prevents material accumulation. |
| Large-diameter pipelines (DN300 and above) | Gate Valve | Large-diameter ball valves have high manufacturing difficulty and high cost; gate valves have a structure that is easier to implement for large-diameter designs and lower costs. |
| Automated control systems | Ball Valve | They have a fast response speed and can be efficiently matched with pneumatic/electric actuators to meet the rapid control needs of automated systems. |
In addition to initial selection, maintenance costs and service life are also key concerns for enterprises.
Maintenance Difficulty: Ball valves have fewer components and their seals are mostly of modular design. When replacing seals, there is no need to disassemble the entire valve, resulting in high maintenance efficiency. Gate valves have a complex structure; repairing wear on gate discs and valve stems requires professional tools, and if gate disc jamming occurs, the entire valve may need to be disassembled, leading to a longer maintenance cycle.
Cost Difference: Small-diameter ball valves (DN50 and below) are cheaper than gate valves of the same specification and require less installation space. For large-diameter valves (DN200 and above), gate valves have a clear cost advantage. Due to the high machining precision required for the ball, the price of large-diameter ball valves is usually 1.5 to 2 times that of gate valves.
Service Life: Under clean, non-corrosive working conditions, the service life of gate valves can reach 10-15 years. However, under working conditions with impurity-containing, corrosive media or frequent opening and closing, ball valves have stronger wear resistance and anti-leakage capabilities, and their service life can be extended by more than 30%.
"Whether it is a ball valve or a gate valve, the core of selection lies in the 'matching between working conditions and valve characteristics,'" industry experts stated. Incorrect selection (e.g., using a ball valve for flow control or a gate valve for particle-containing media) may lead to premature valve damage and even safety accidents such as system leaks and production halts. In the future, with the integration of material technology (e.g., wear-resistant ceramic seals) and intelligent technology (e.g., valve condition monitoring sensors), the performance boundaries of the two types of valves may further expand. However, the core principle of "selecting based on needs" will remain crucial in the field of industrial fluid control.
Enterprises should comprehensively evaluate medium characteristics (composition, viscosity, impurity content), operation frequency, flow requirements, pipeline diameter, and cost budget during selection. When necessary, they can consult professional valve technical service providers to ensure long-term stable operation of equipment.
